set of 8pcs - custom made support plate (steel, 1mm)

product attributes

• set of 8 pcs = 8 identical support plates, customized
• also to choose: mirror inverted (4x left, 4x right)
• material: sheet metal
• thickness 1,0mm
• yield strength 140-280MPa
• customized contour
• based on customer's scheme drawing
• based on a sample, stencil or a template
• maximum dimensions:
• width up to 150mm
• length up to 380mm
• includes drawn holes (dimples) for extra strength
• max 6 holes per plate

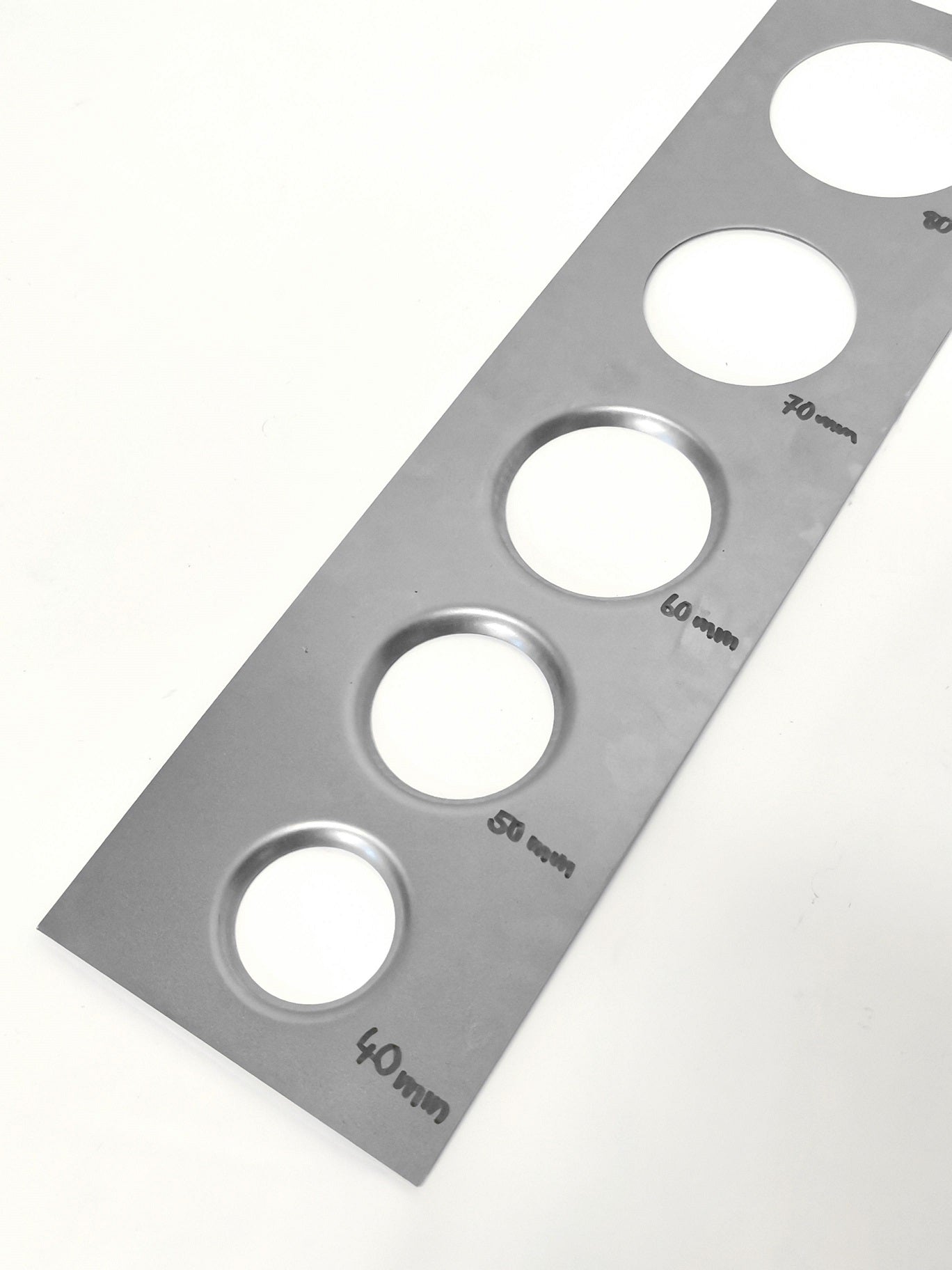

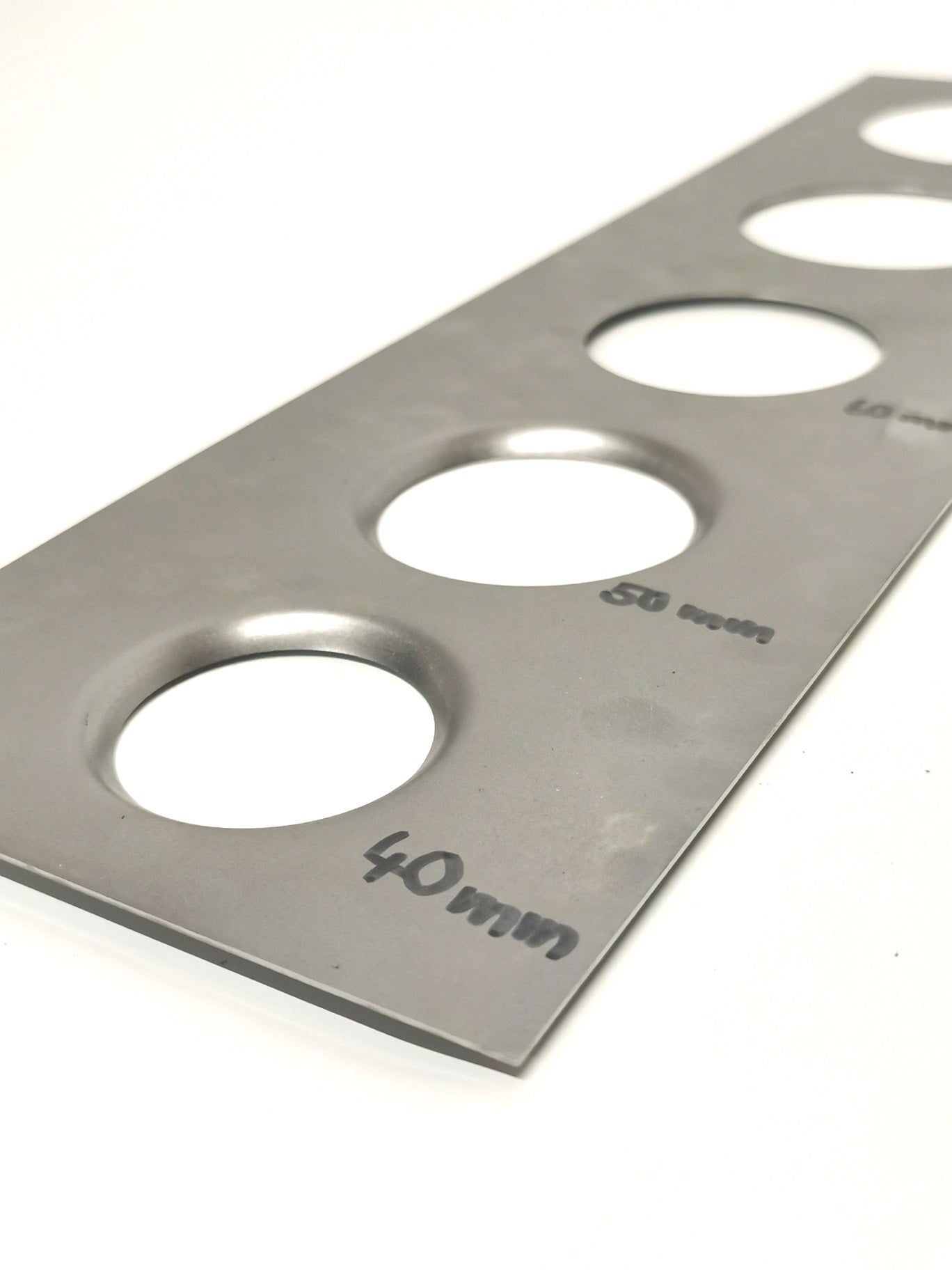

• available dimple diameters: 40/50/60/70/80mm (dimensions before deep draw/flanging; diameter subject to change during deep draw/flanging)
• distance from hole to edge: min. 16mm
• distance from hole to hole: min. 23mm
• intended for welding applications

installation instructions

No installation instructions apply for this product.

restriction of use

Requires installation by professionals under the use of personal protective equipment.
