mounting frame/plate/bracket for EcuMaster ADU 7 dash - universal

product attributes

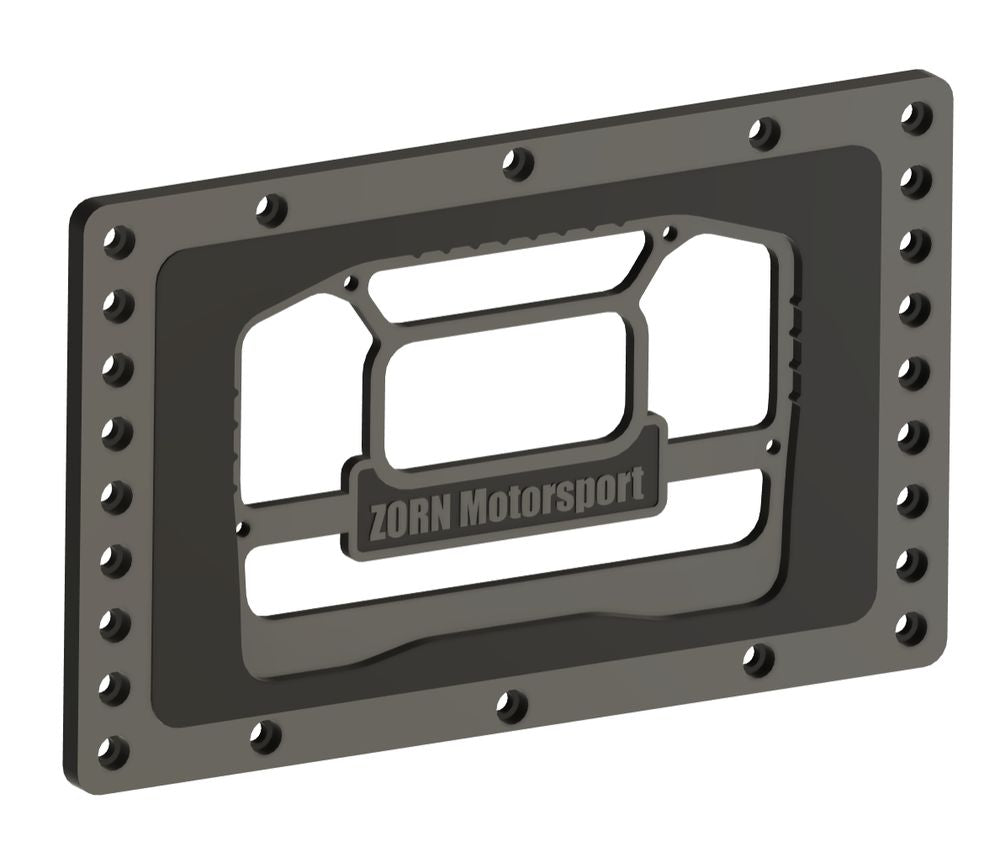

• rectangular mounting frame
• suitable for EcuMaster Dash ADU 7 (Rev2)
• exactly follows the countour of the display/dash
• dash/display is recessed by 5mm
• the frame features a 1mm shoulder
• enables to run an additional cover plate (e.g. aluminum or sheet metal) to hide the mounting bolts (the cover is not included)
• dimension of the required cutout in the cover: 250x150mm with radii 5mm
• material: ABS, color black (made by 3d printing)
• filling of the print: only partial, thus the frame is even lighter
• outer dimensions: 300x185mm
• overall height of the frame: 10mm
• universal bolt pattern
• overall 24 bolt holes for M6 Allen-Key bolts (metric, please check bolt head sizes on imperial bolts)
• of which 9 are inline on the left and 9 inline in the right
• 3 additional holes on top and 3 on the bottom
• following symmetric bolt patterns can be achieved
• 275x20mm to 275x160mm (in increments of 20mm)
• 170x165mm
• 275x170mm (by using the bolts on the center axes)

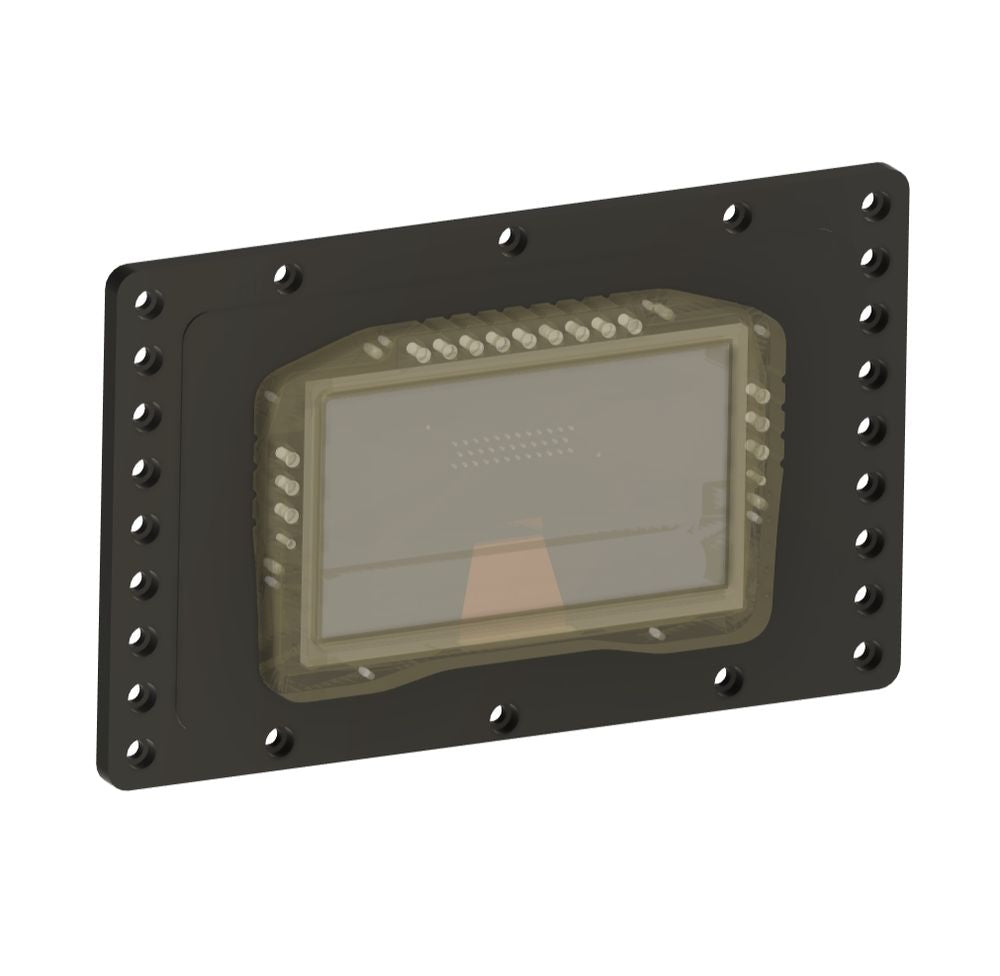

• the ADU shown in the pictures is not part of the scope of delivery

notes/installation instructions

• this is not an original EcuMaster part
• reference of trademarks happens for identification purposes only
• product names, logos, brands, trademarks and registered trademarks are property of their respective owners

restriction of use

not applicable
