DFNDR skid plate for Audi A4 B5 (type 8D) and Audi A4 B6 (type 8E) - aluminum underfloor protection

DFNDR skid plate for Audi A4 B5 (type 8D) and Audi A4 B6 (type 8E) - aluminum underfloor protection

Regular price €299,00 EUR
Regular price €349,00 EUR Sale price €299,00 EUR
special offer Sold out
Tax included. Shipping calculated at checkout.
version

Most of the products in our shop are made on order. Also this product is "on order only" and not on stock. The item will be shipped within 4 weeks of your order.


Well protected with DFNDR: our series of heavy duty underfloor protection - engineered and produced in Germany.

To assure perfect fitment we are scanning all car underfloors with our 3d scanner and do CAD modeling of the parts based on the data we collected.


product attributes

  • extremly robust skid plate for engine and ambient components
  • including mounting material:
    • bracket kit (left + right) for the OE front cross brace
    • bolts in grade 10.9
  • elaborate and well-proven details
    • counter-sunk bolt heads
    • sealed bolt threads to prevent deposition of dirt and splash water (at hardly accessible fastening points)
    • elastic absorbers for reduction of vibration and for noise insulation
  • material of the skid plate: special alloy of aluminum
    • combines high strength with good corrosion resistance
    • thickness: 4mm
    • still ca. 30% lighter than a skid plate made from 2mm steel
  • surface of the skid plate: raw, refined with a frosted finish
  • weight of the full kit: ca. 5,0kg
  • available in two different versions:
    • fully closed for high protection
    • with 2x NACA air duct to assist engine bay ventilation
  • type approval:
    • in Germany: according to §19 StVZO no certification needed
    • other countries: please study corresponding regulations of your country or get in touch with your certification engineer


application list

  • suitable for following models:
    • Audi A4 B5 (type 8D) with 4-cylinder engines (1,6/1,8/1,8T/1,9 TDI)
    • Audi A4 B6 (type 8E) with 4-cylinder engines (1,6/1,8T/1,9 TDI/2,0/2,0 FSI)
    • no matter if front wheel drive or quattro
    • no matter if petrol/gasoline or diesel
    • no matter if manual transmission or automatic transmission
    • no matter if sedan or wagon (Avant)
  • expressly not suitable for:
    • Audi A5 B5 (type 8D) with 6-cylinder engines (2,4/2,6/2,8L)
    • Audi S4 B5 (type 8D) 2,7T
    • Audi RS4 B5 (type 8D) 2,7T
    • Audi A4 B6 (type 8E) with 6-cylinder engines (2,4/2,5 TDI/3,0L)
    • Audi S4 B6 (type 8E) 4,2L


notes/installation instructions

  • before assembly: clean all contact areas as well as bolting points thoroughly
  • when attaching components to OE mounting points please refer to manufacturer's specifications (e.g. tightening torques)
  • needed for installation, but not part of the delivery scope: torque spanner 20-50Nm, bolt adhesive medium strength (e.g. Loctite)
  • after taking your car to loose ground or on highly contaminated roads/paths it is expressly recommended to clean the underfloor including the skid plate and the space inbetween skid plate and engine/gearbox; also it is recommended to check all mounting points for damage and proper bolting


restrictions of use

Requires installation by professionals under the use of personal protective equipment.

View full details

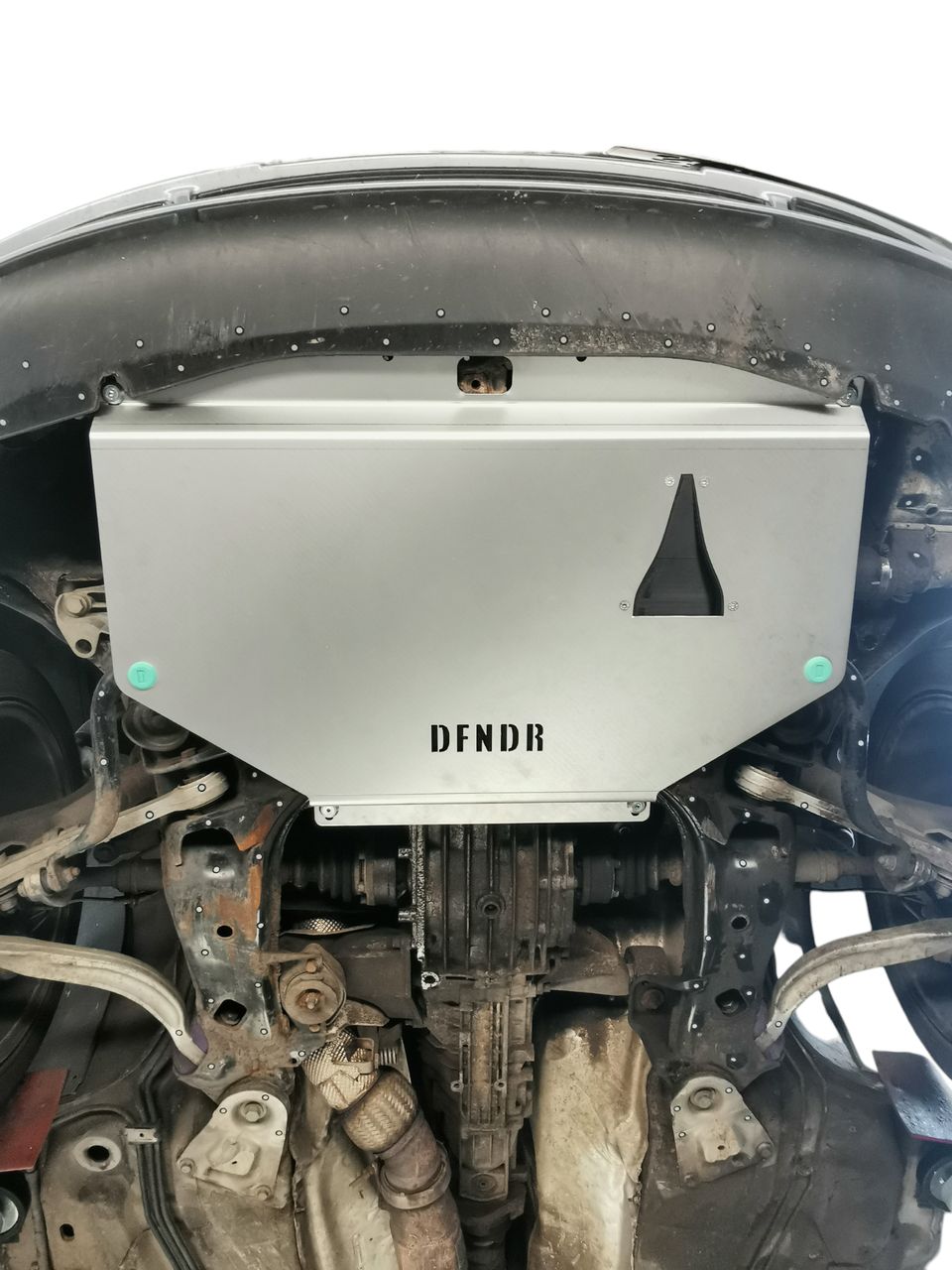

Einbaubilder
