mounting bracket "clubsport" for quick release hood fasteners - Audi A4 B5 - rear mount of bonnet

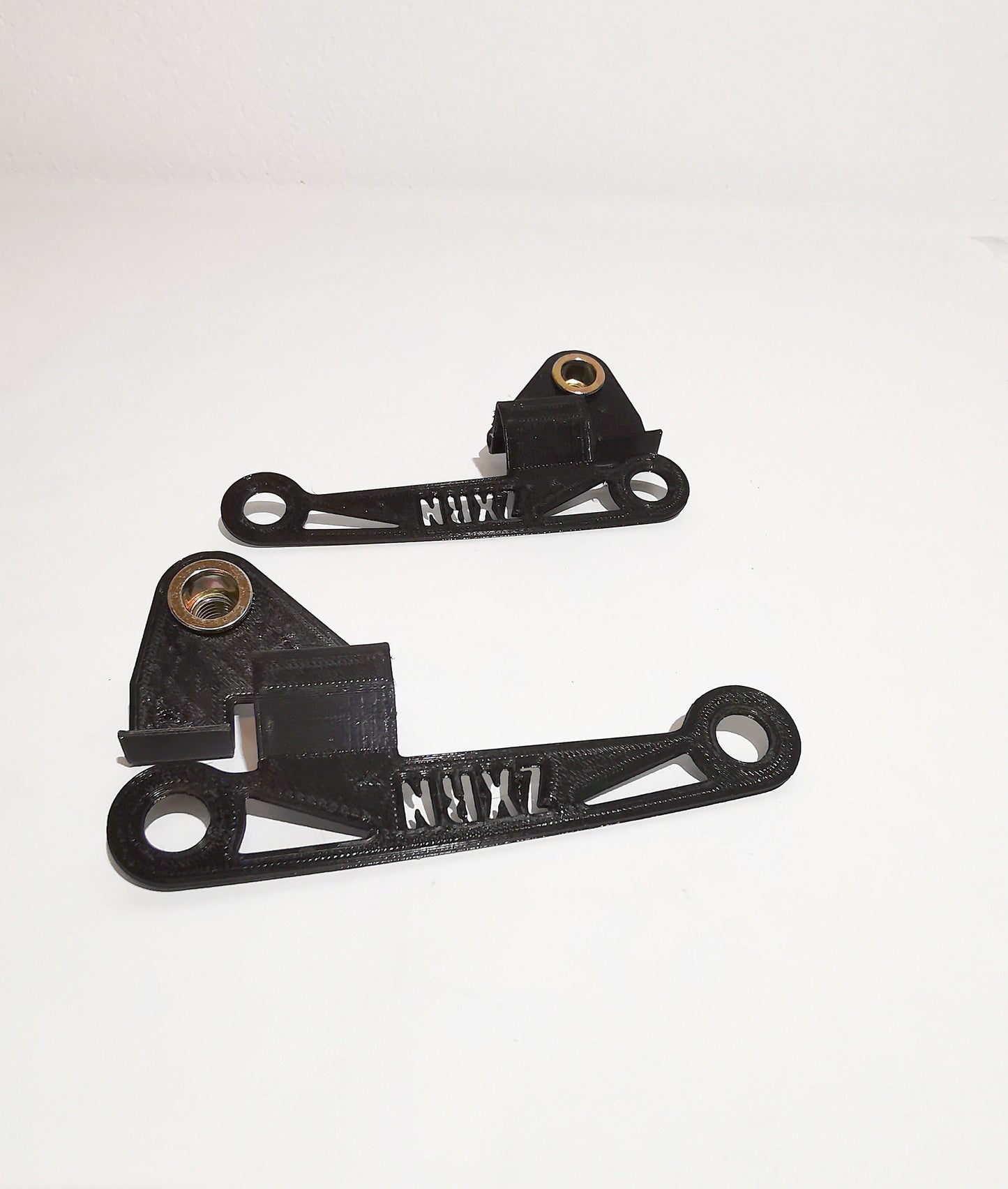

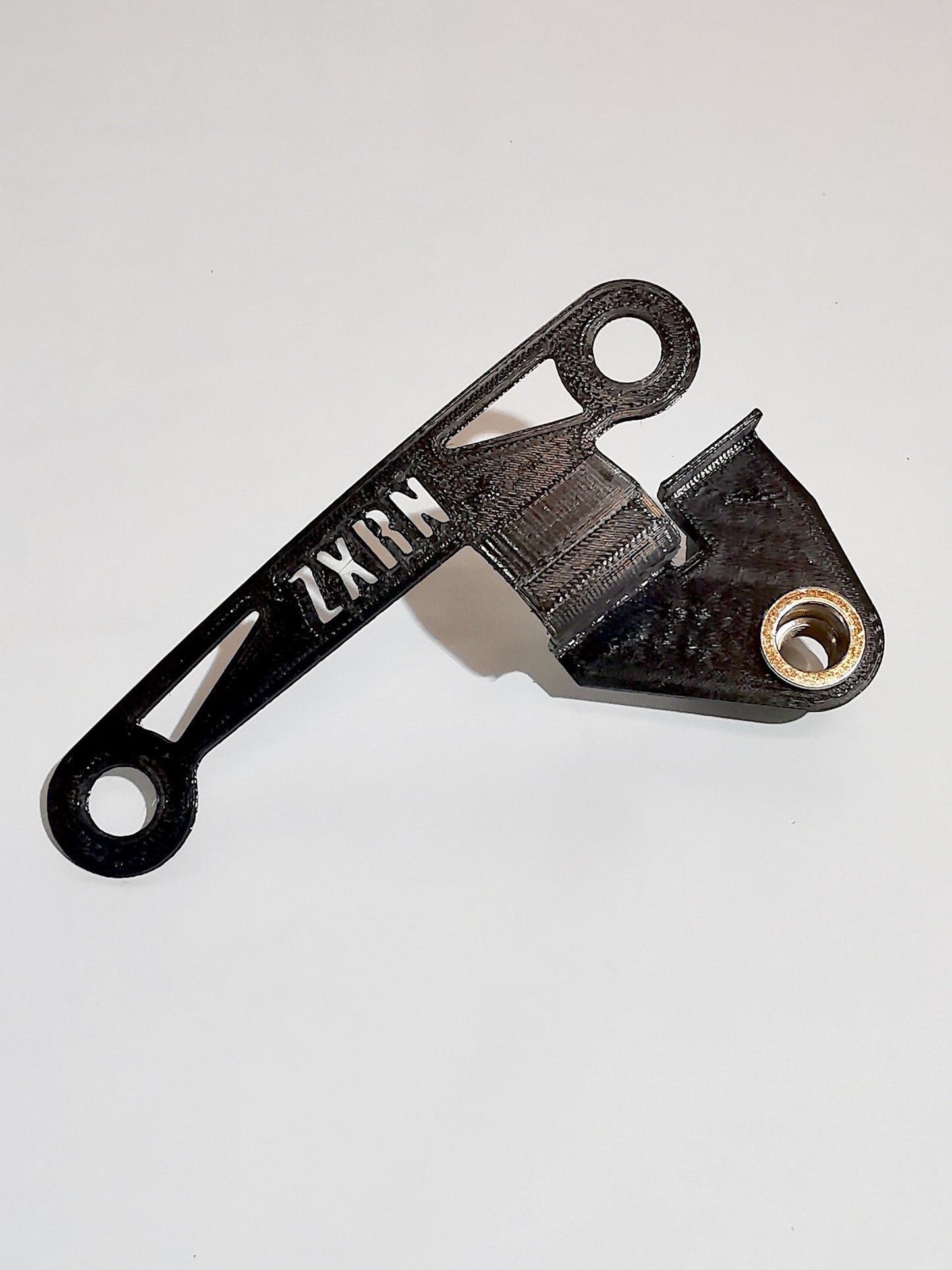

Pictures show sample parts from 3d printing. This is not the final material, these samples were intended for test installation procedure.

This product is not on stock. Pre-order to make sure you will get a set! Estimated time of shipping: 4 weeks after order.

product attributes

• material of sheet metal: aluminum 1.5mm, powder coated (black)
• material pop rivet nut: steel, zinc plated
• thread size: M10 (metric)
• delivery scope: 1 pair (left + right)
• without threaded pin (the pin is only shown for demonstrational purposes; it ususally is part of your quick lock hood fasteners, e.g. AeroCatch®)
• please read following installation instructions carefully!

installation instructions

• can't be used in combination with original hood hinges

• original bonnet needs to be reworked at the hinge connection points and close to the hinge connection points

• the water deflector cover needs to be reworked (trimmed)
• deletion of bonnet cable pull is recommended
• we recommend to only use original AeroCatch® quick release fasteners

restriction of use

Not intended for road use, motorsports only. Requires installation by professionals under the use of personal protective equipment.
