mounting console for 20 liter race tank/fuel tank - aluminum - universal version and Golf Mk4

mounting console for 20 liter race tank/fuel tank - aluminum - universal version and Golf Mk4

Regular price €149,00 EUR
Regular price Sale price €149,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.
version

This product is not on stock. Pre-order to make sure you will get one! Estimated time of shipping: 4 weeks after order.


product attributes

  • designed in cooperation with the TDI diesel experts of 400performance
  • material: aluminum
  • thickness: 3mm
  • surface: raw

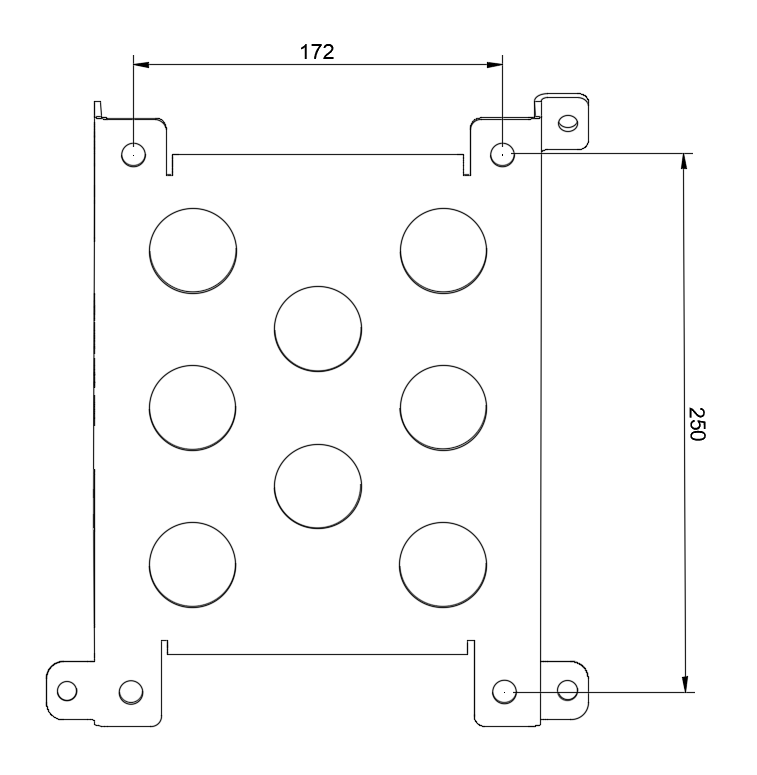

  • suits universal race tanks with a reservoir size of 20 liters and four mounting points; tank mounting point pattern 172x250mm (please double check)
  • scope of delivery:

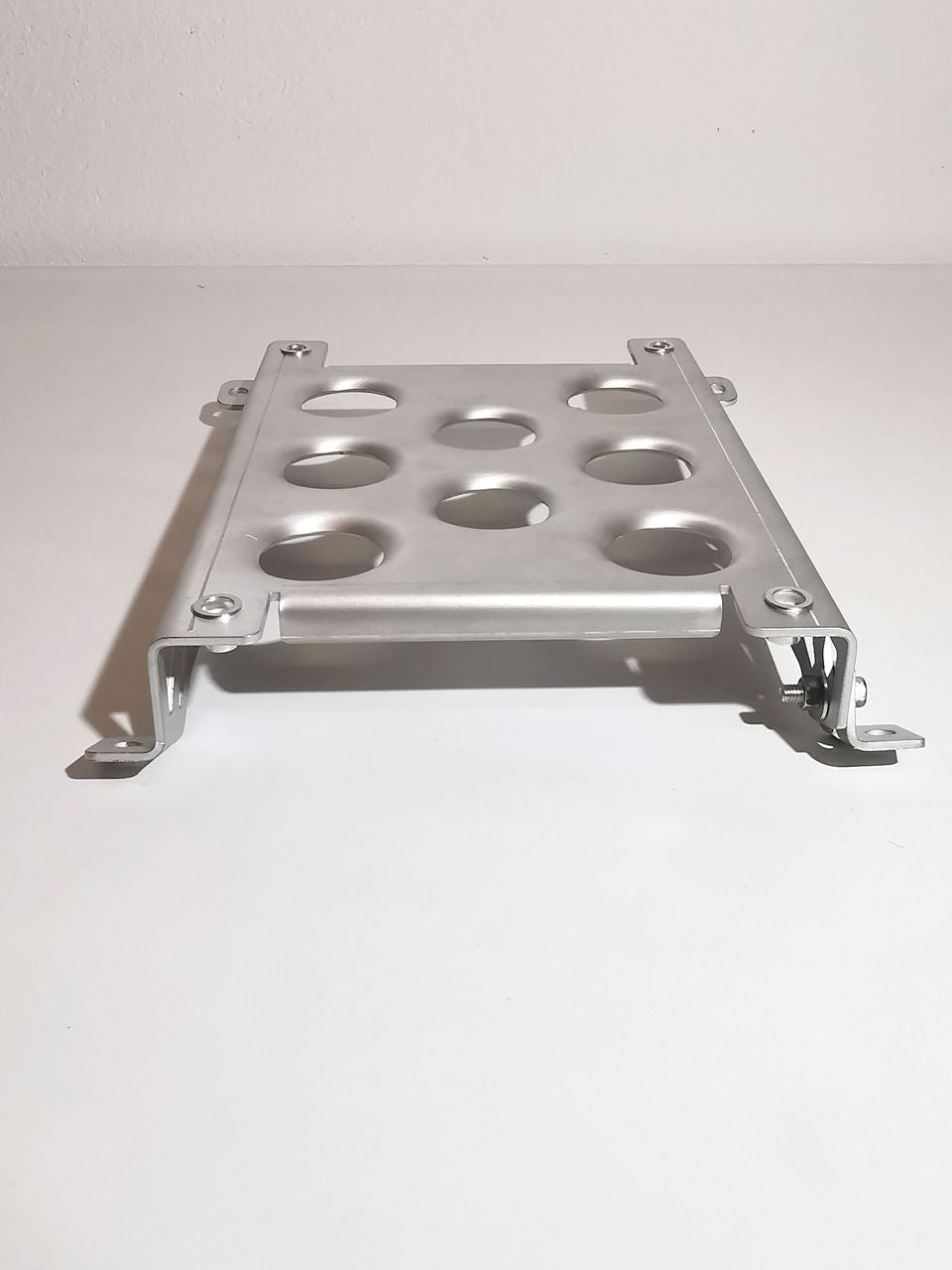

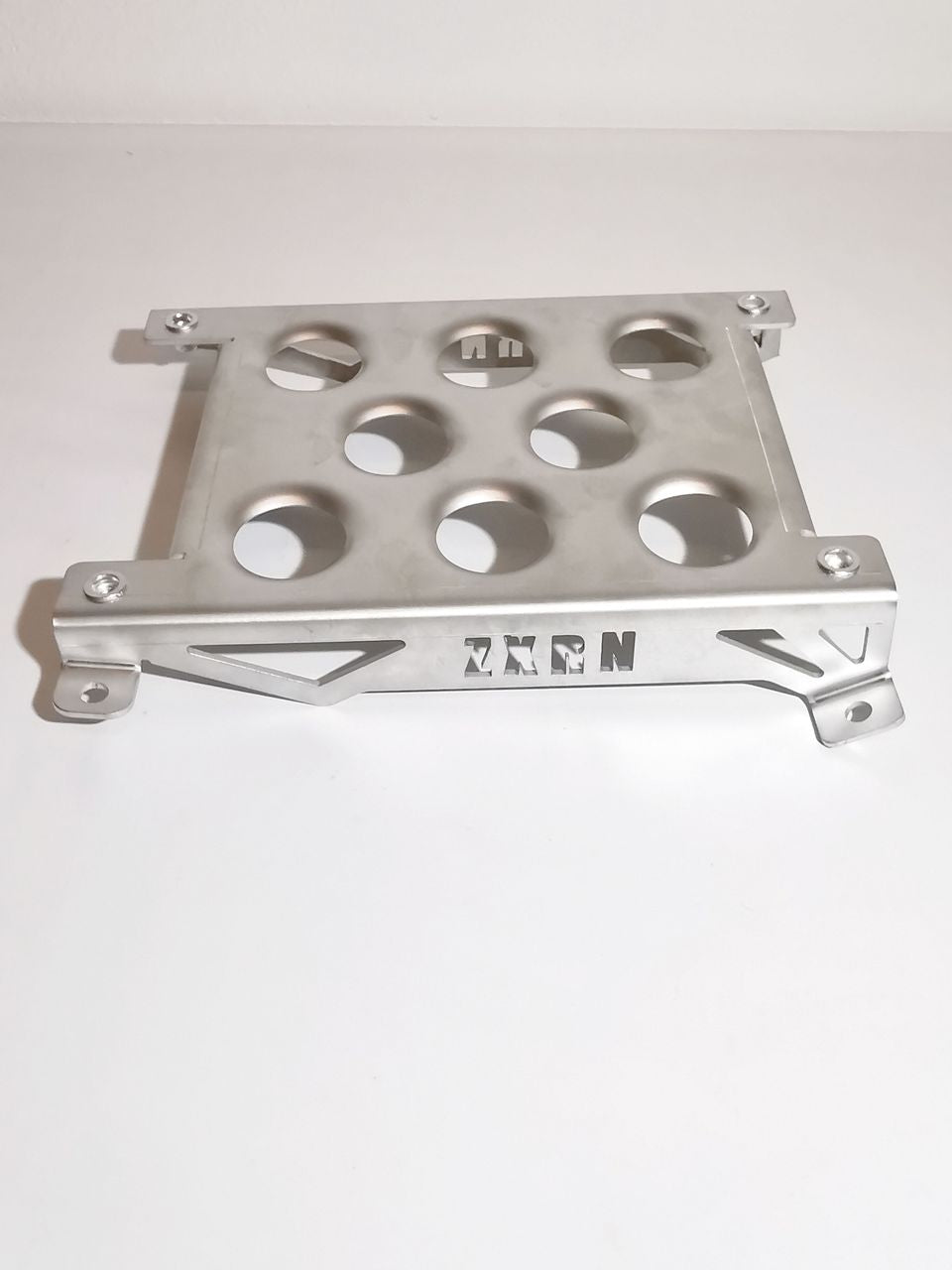

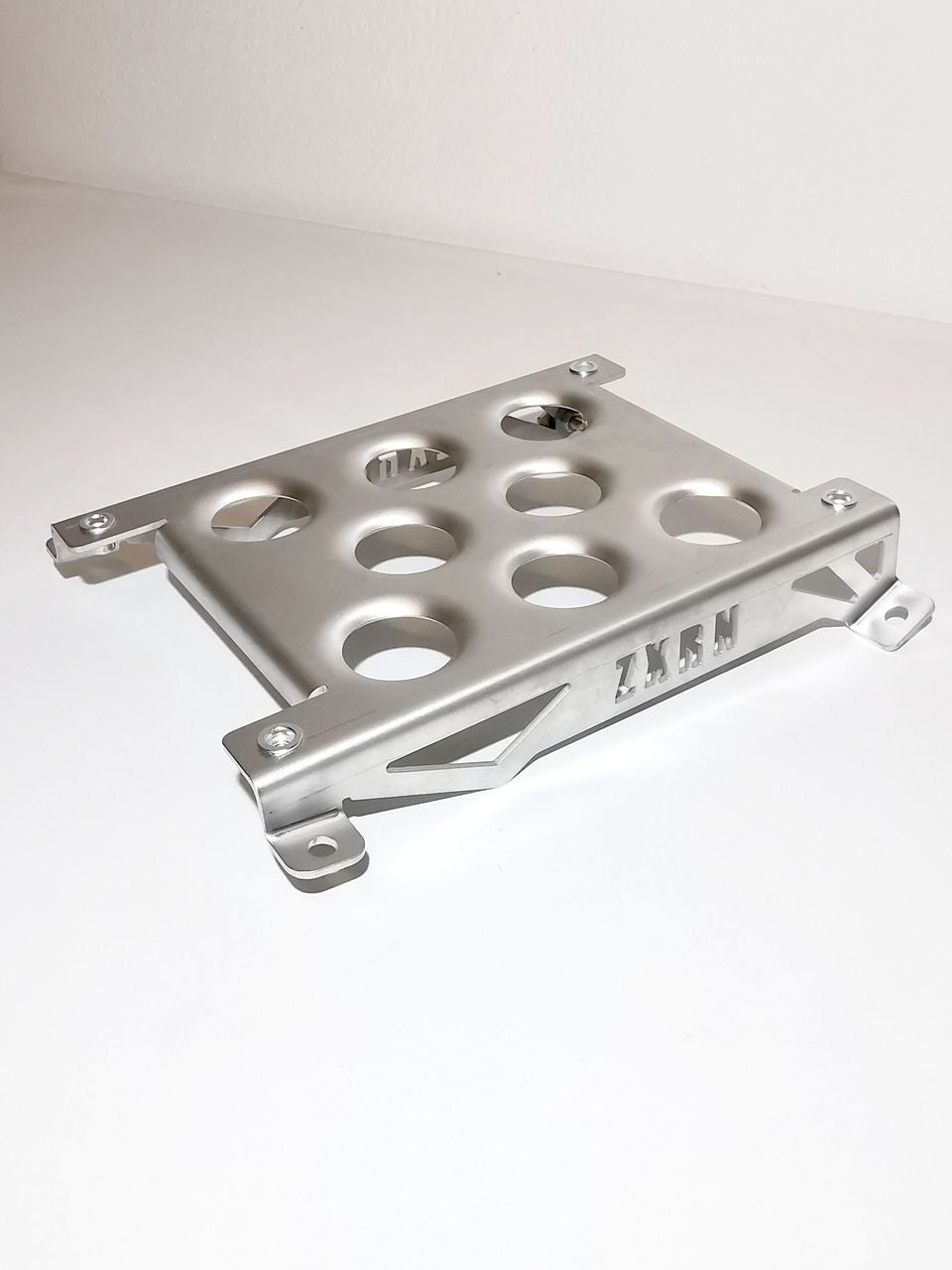

    • 1pc base plate pre-assembled with 4x rivet nut M8 (steel)
    • version "universal": 4pcs angled brackets, adjustable
    • version "Golf 4 4motion": 1pc angled bracket, adjustable (the other 3 mounts are fix and designed to specifically match the Golf Mk4)
    • no bolts, nuts and washers
  • mounting to the car: with four bolts size M8 (not included in the delivery scope)
  • details of version "universal":
    • countless adjustment options thanks to slot holes in the angled brackets

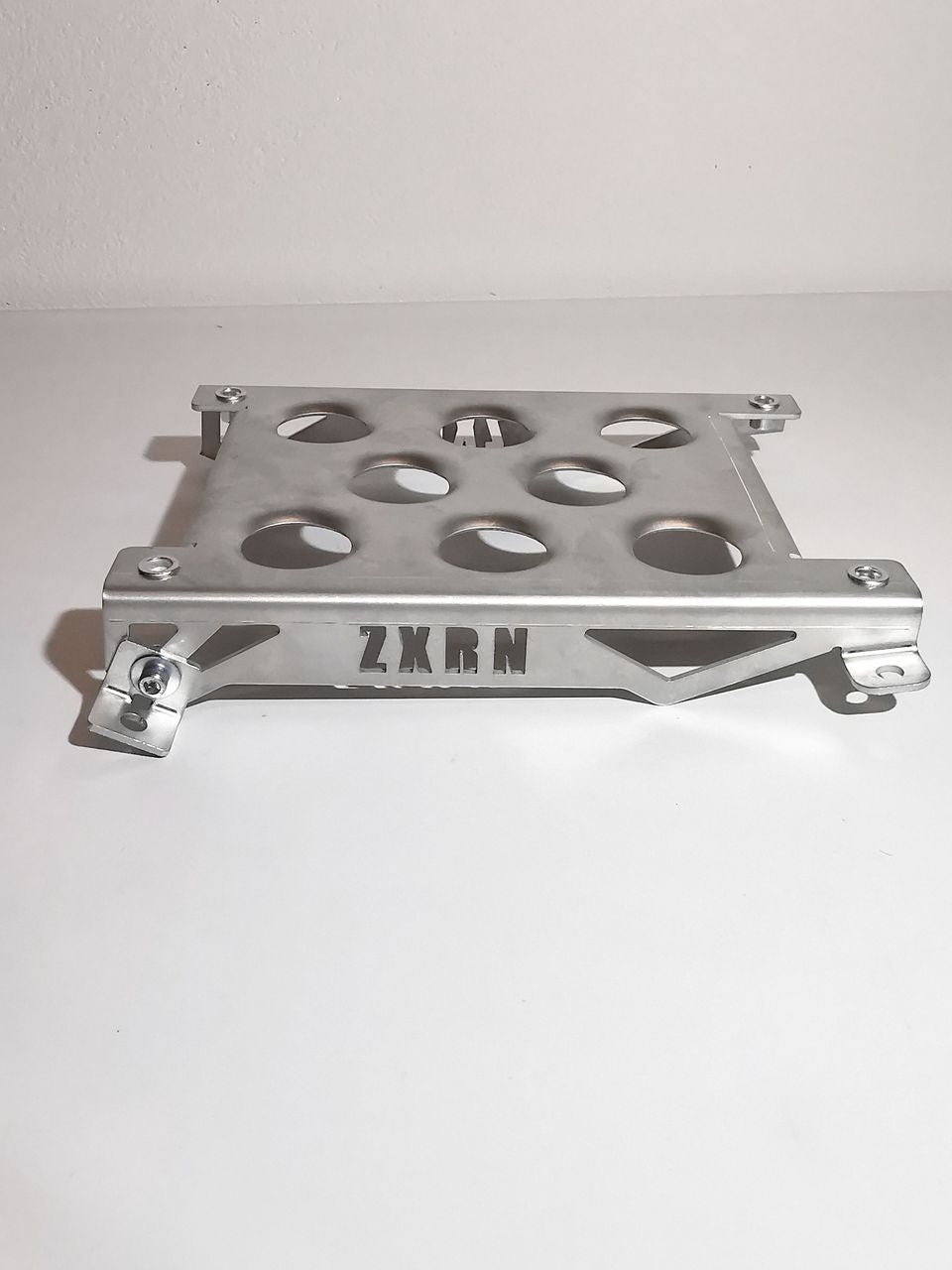

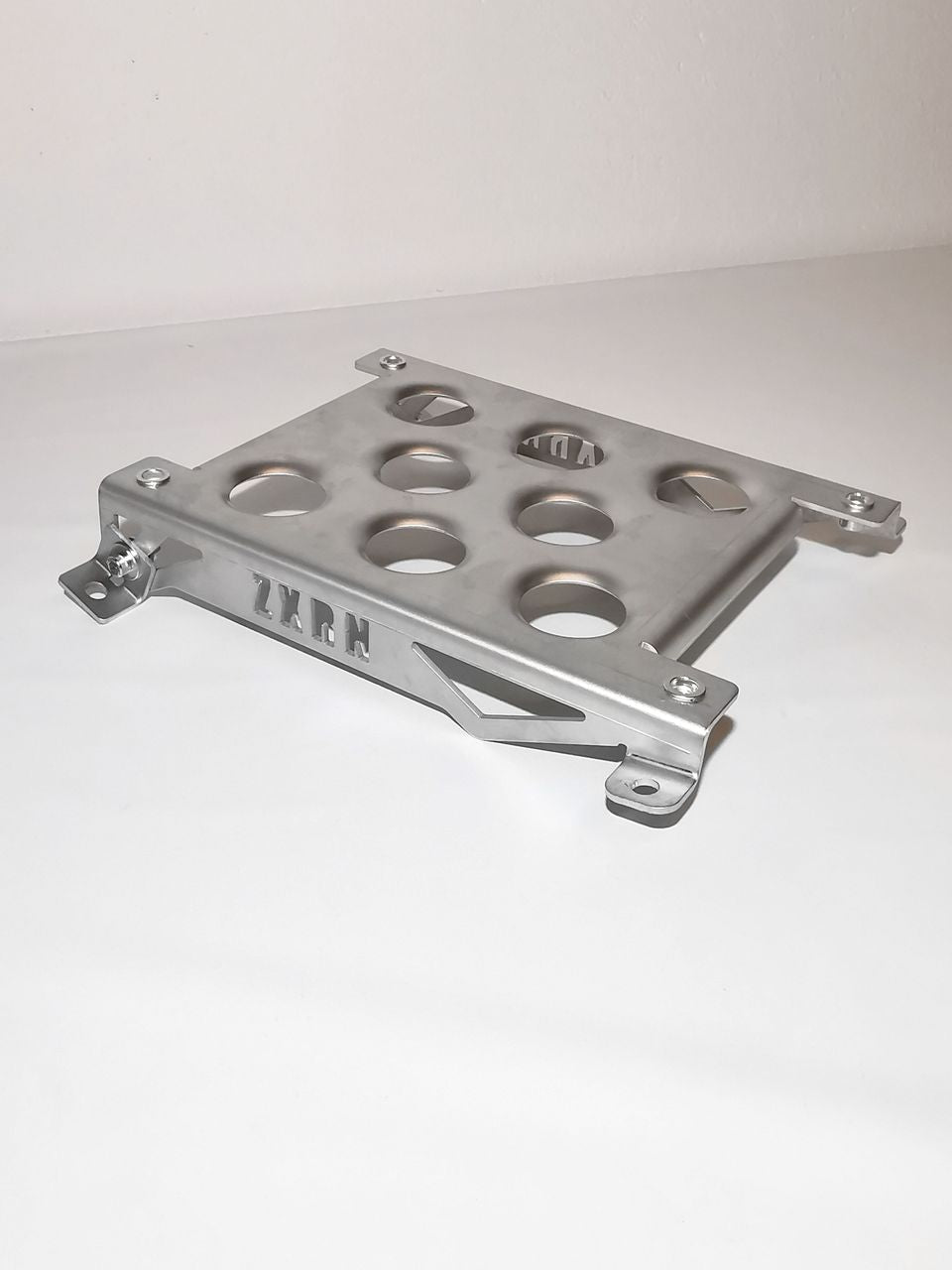

  • details of version "Golf 4 4motion"
    • to be mounted inside the stripped passenger compartment
    • to be mounted instead of the rear seat bench (passenger side)
    • both front mounts have an angle of 8° compared to the tank surface
    • the fix rear mount has an angle of 26° compared to the tank surface

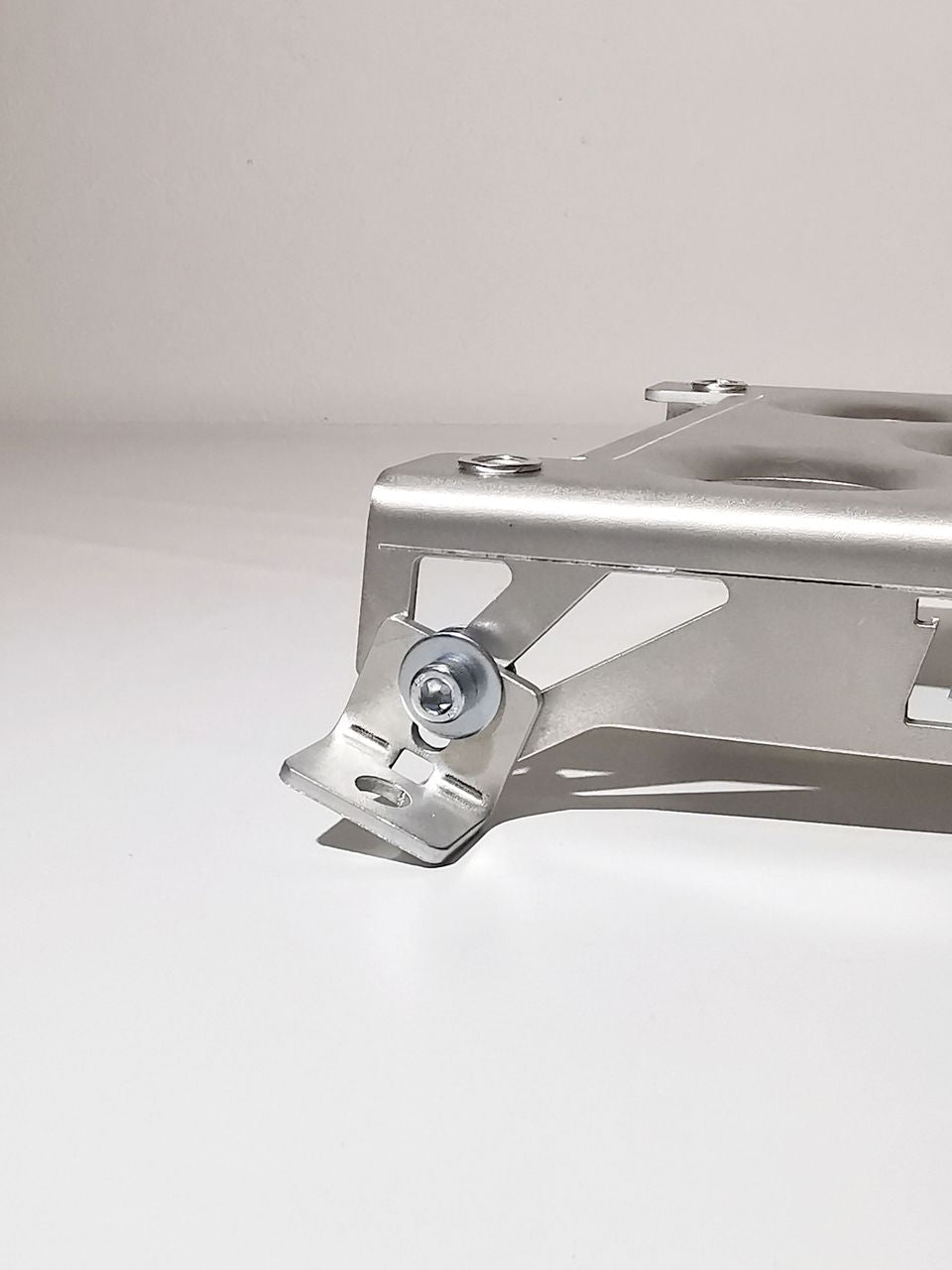

    • the adjustable rear mount in variable in angle and height

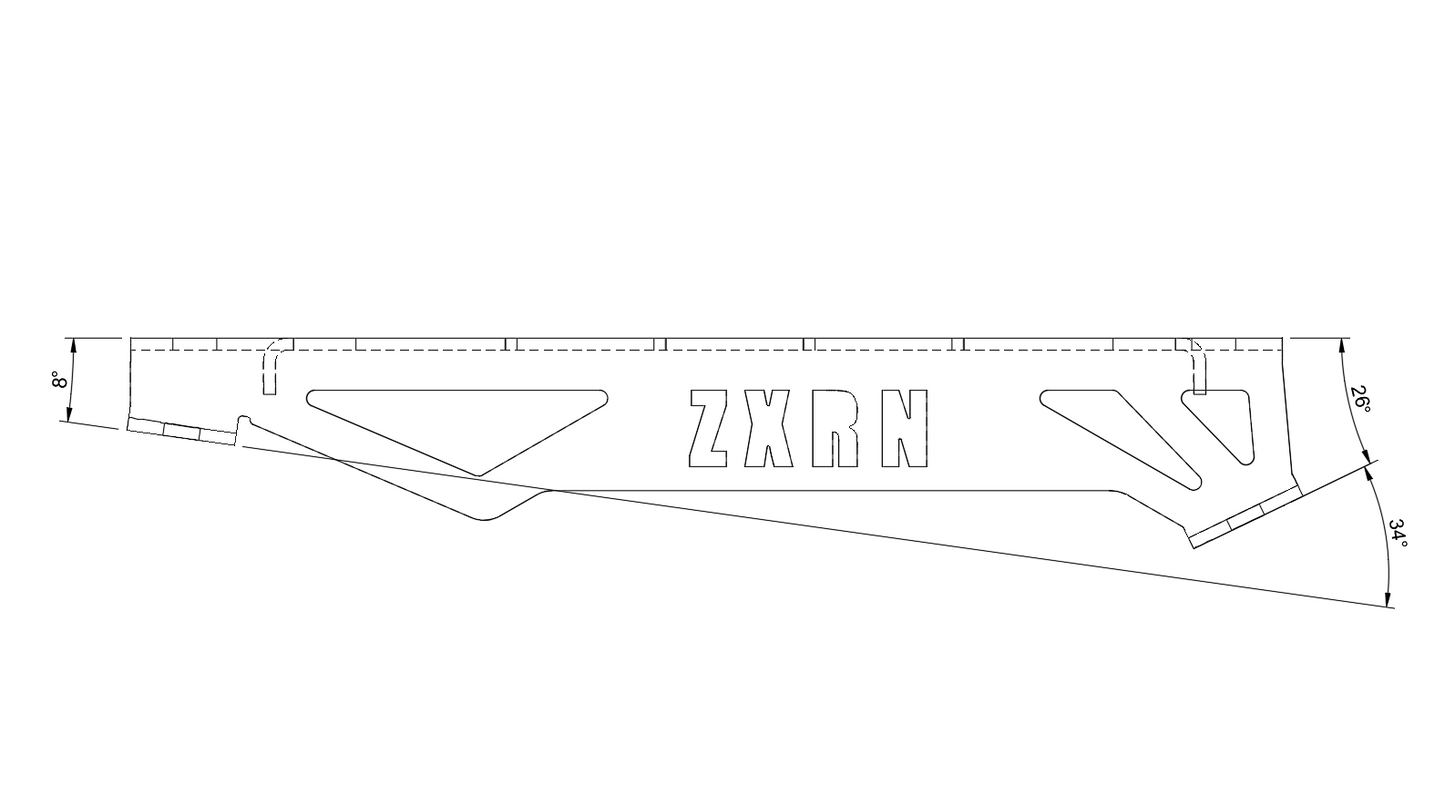

    • overall angle between front mounts and rear mount is 34° (see sketch)


notes/installation instructions

The raw version is only for interior use. If you need a powder coated version for use under environmental conditions please get in touch with us.


restriction of use

Not intended for road use, motorsports only. Requires installation by professionals under the use of personal protective equipment.
