full set brake cooling - Volkswagen Golf Mk2 - brake size 256mm and 280mm (4-bolt pattern)

This product is not on stock. Pre-order to make sure you will get one! Estimated time of shipping: 4 weeks after order.

product attributes

• full set consisting of
• brake backing plate / dust plate with opening for brake cooling (LH + RH)
• air shovel to redirect air flow to the disc (LH + RH)
• fits Golf Mk2 brake systems with rotor diameters of 256mm and 280mm
• OE part number of stock backing plates for comparison purposes: 357 615 311 A
• this kit is for use on Golf Mk2 only, no further installation tests of our air-shovels have been made yet

• the Mk2 was fitted with a coilover kit (reduced rebound travel compared to regular shock absorbers)

• tested with drive shaft diameters of 21mm (LH) and 30mm (RH)
• material: stainless steel, laser cut
• material thickness: 1.5mm
• surface: raw
• scope of delivery: 1 full set = 1x LH and 1x RH
• not part of the delivery: attachment material
• please read following notes carefully

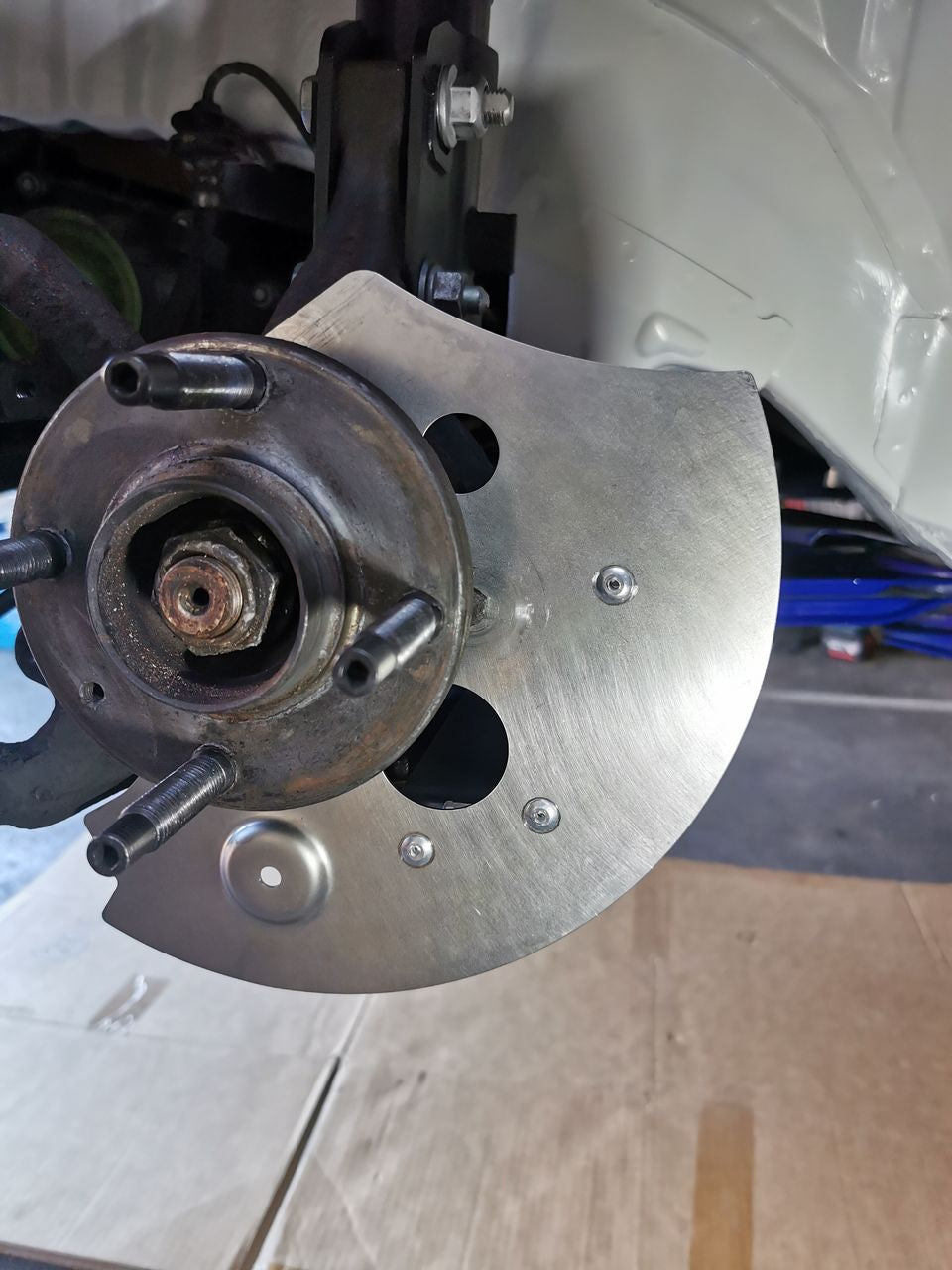

• installation pictures exemplary show the kit for 239mm brakes, which comes with different backing plates

notes/installation instruction

• backing plates and air shovels need to be assembled in the car during the installation process

• order of installation:
• mount the backing plate to the wheel carrier unit
• attach the shovel to the backing plate
• attachment material is not part of the delivery scope!
• you will need following attachment materials
• either 6x rivet 5,0mm (for thickess 3,0mm and higher) - this is our recommendation!
• or 6x bolt/toothed washer/nut M5 for easy removal in case of servicing (only adequate for pure race use)
• it is essential for you to check clearance to other components during installation/before use to avoid collision under worst case scenarios:
• critical clearance will occur on drive shaft, wishbone, tie rod
• check needs to be performed in full bump and full rebound position of the suspension system for both, full steer to the left and full steer to the right

restriction of use

Not intended for road use, motorsports only. Requires installation by professionals under the use of personal protective equipment.
