upper replacement brace for radiator carrier, lightweight (aluminum) - Volkswagen Golf Mk2

upper replacement brace for radiator carrier, lightweight (aluminum) - Volkswagen Golf Mk2

Regular price €149,00 EUR
Regular price Sale price €149,00 EUR
Sale Sold out
Tax included. Shipping calculated at checkout.

This product is not on stock. Pre-order to make sure you will get one! Estimated time of shipping: 4 weeks after order.

product attributes

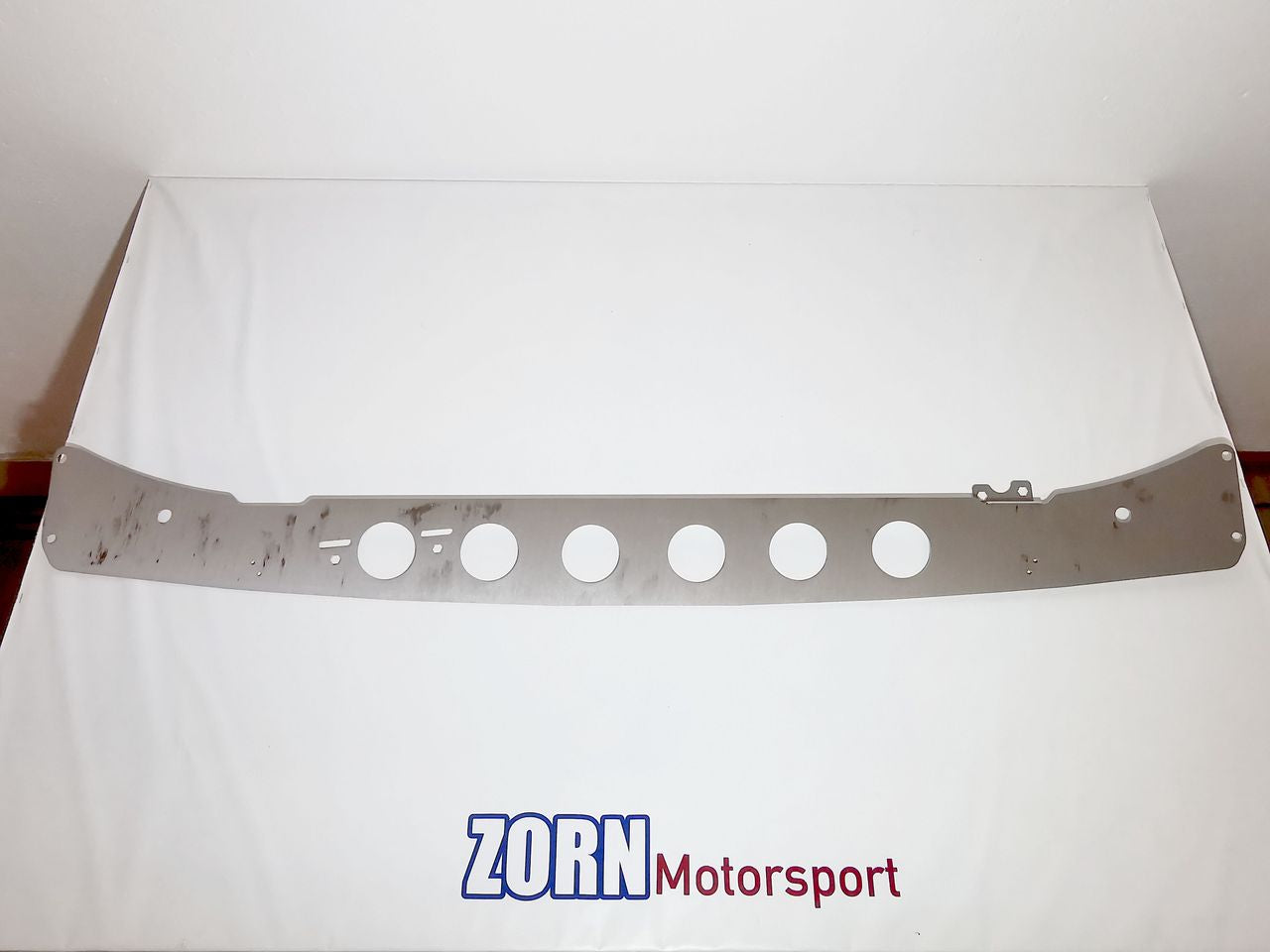

  • material: aluminum (thickness 2mm)
  • surface: raw
  • weight: ca. 700g

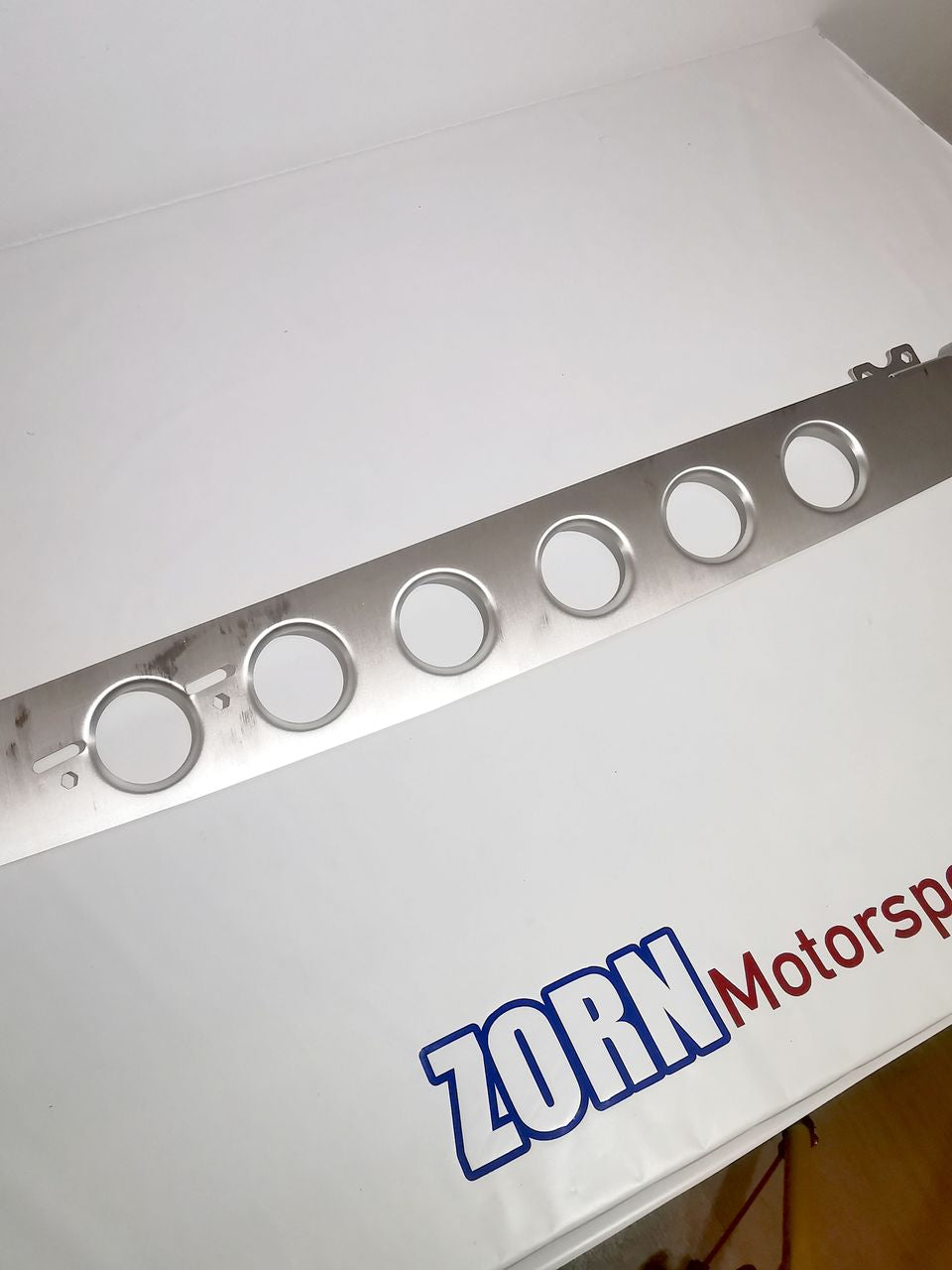

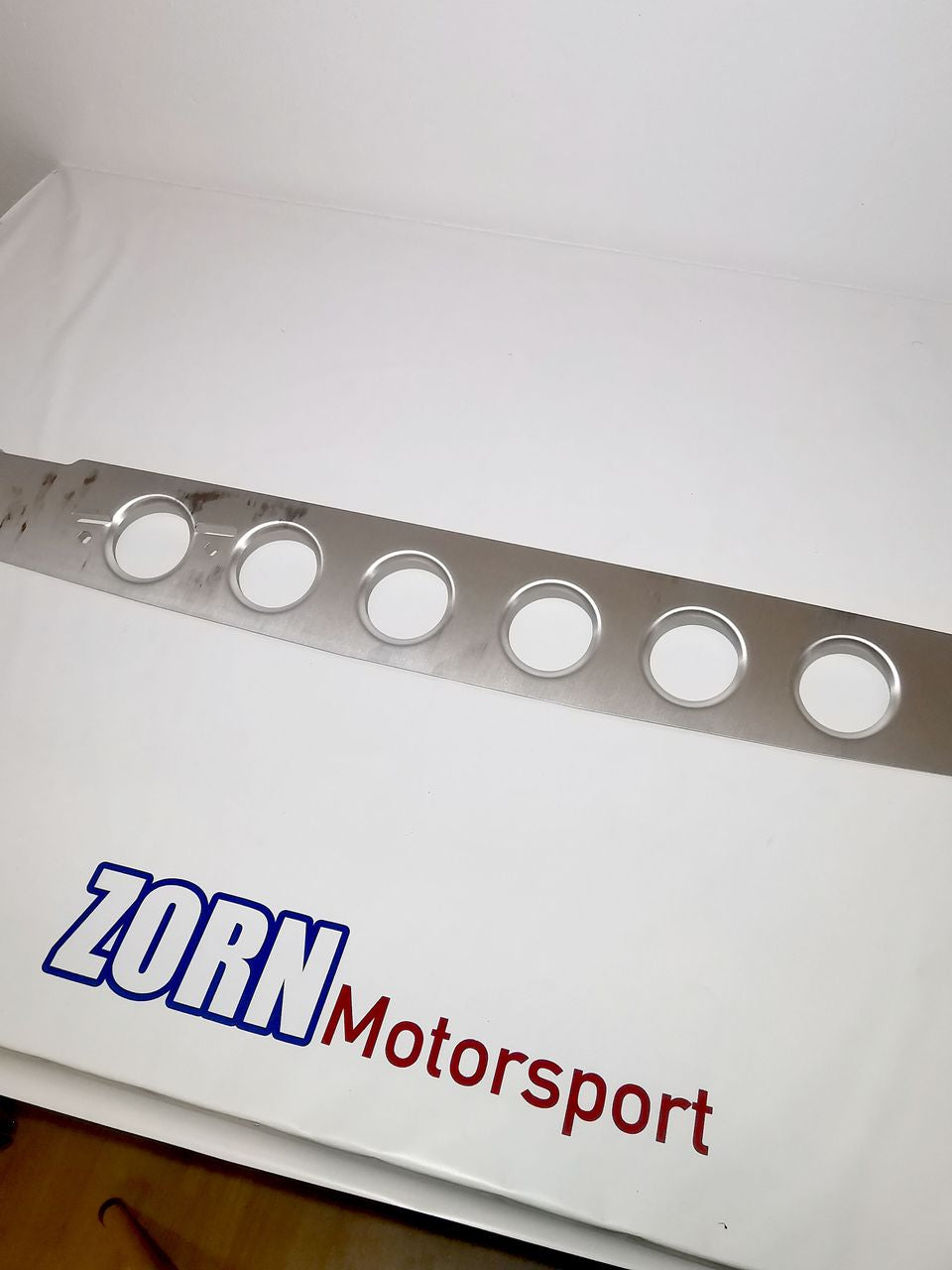

  • features six dimple dies for reinforcement (diameter approx. 63mm)

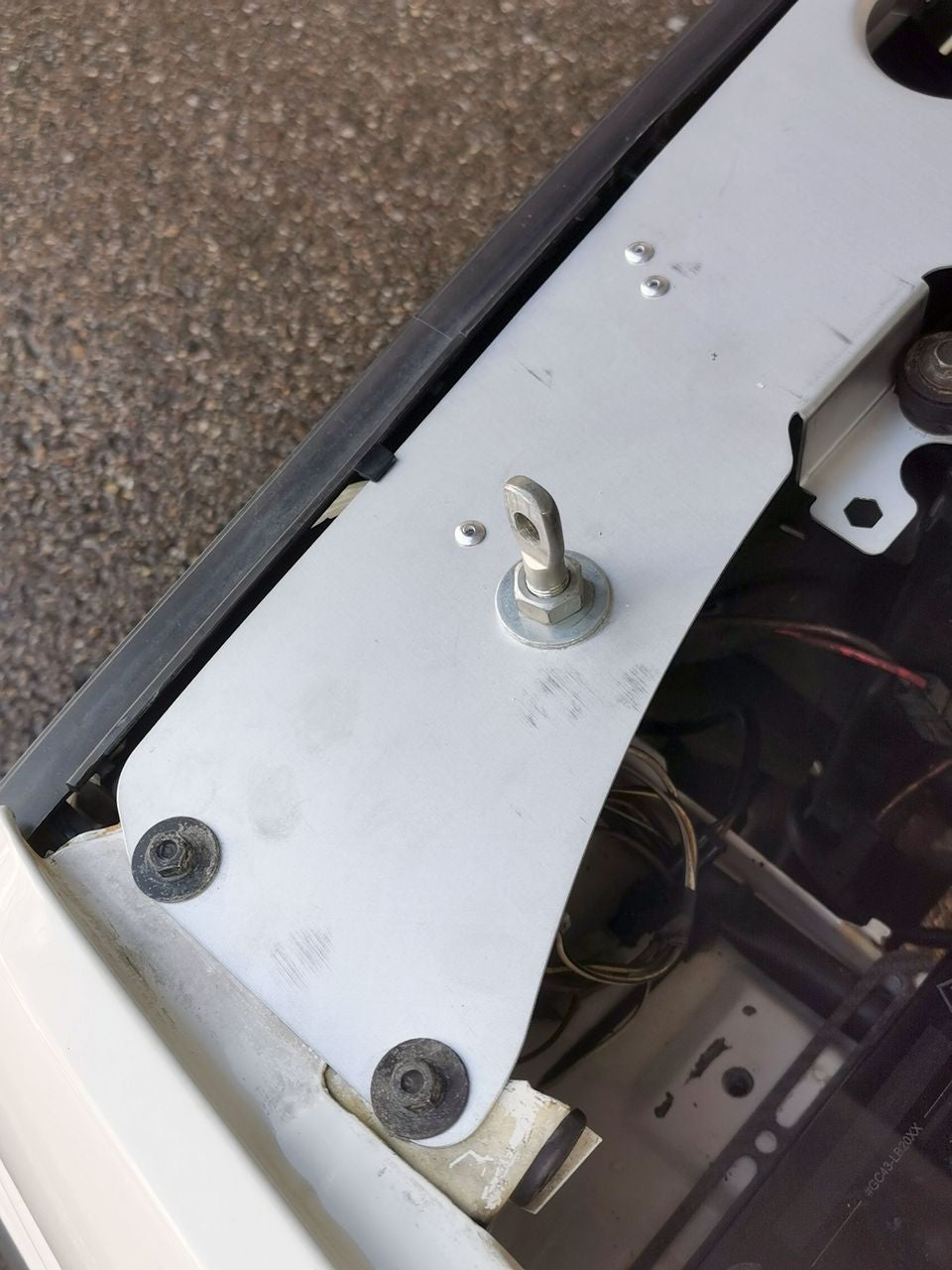

  • including two mounting holes for bolts (studs) of quick release fasteners (the original hood latch will be deleted)
  • including mounting points (4x rivet nut, thread size M6) for original radiators of all lengths
  • installation:
    • connection to the car body (fenders) on all four original mounting points
    • connection to the original radiator carrier by rivets (6pcs; dia=4mm; holes already drilled; rivets not part of delivery scope)
  • please read following installation instructions carefully

installation instructions

  • this bracket is a replacement for the upper brace of the original radiator carrier
    • the original radiator carrier needs to be cut
    • the original hood latch will be fully deleted
    • it is necessary to relocate the signal horn
  • requires following installation equipment, which is not part of the delivery scope: drill 4mm (metric), deburring tool, cleanser, anti corrosion agent, 12x rivet 4mm (metric), tools to remove the standard headlamp carriers from the radiator mount (e.g. spot weld drill, grinder, ...)

restriction of use

Requires installation by professionals under the use of personal protective equipment.

product line ZORN PURE

As the name says: pure, raw parts without any surface treatment - made in the spirit of racing. Not only for the looks, but also for maximized weight reduction. Raw parts will usually come with production marks and scratches from handling. As they are intended for motorsports use, these marks and scratches cannot not be accepted as claim reasons.

View full details

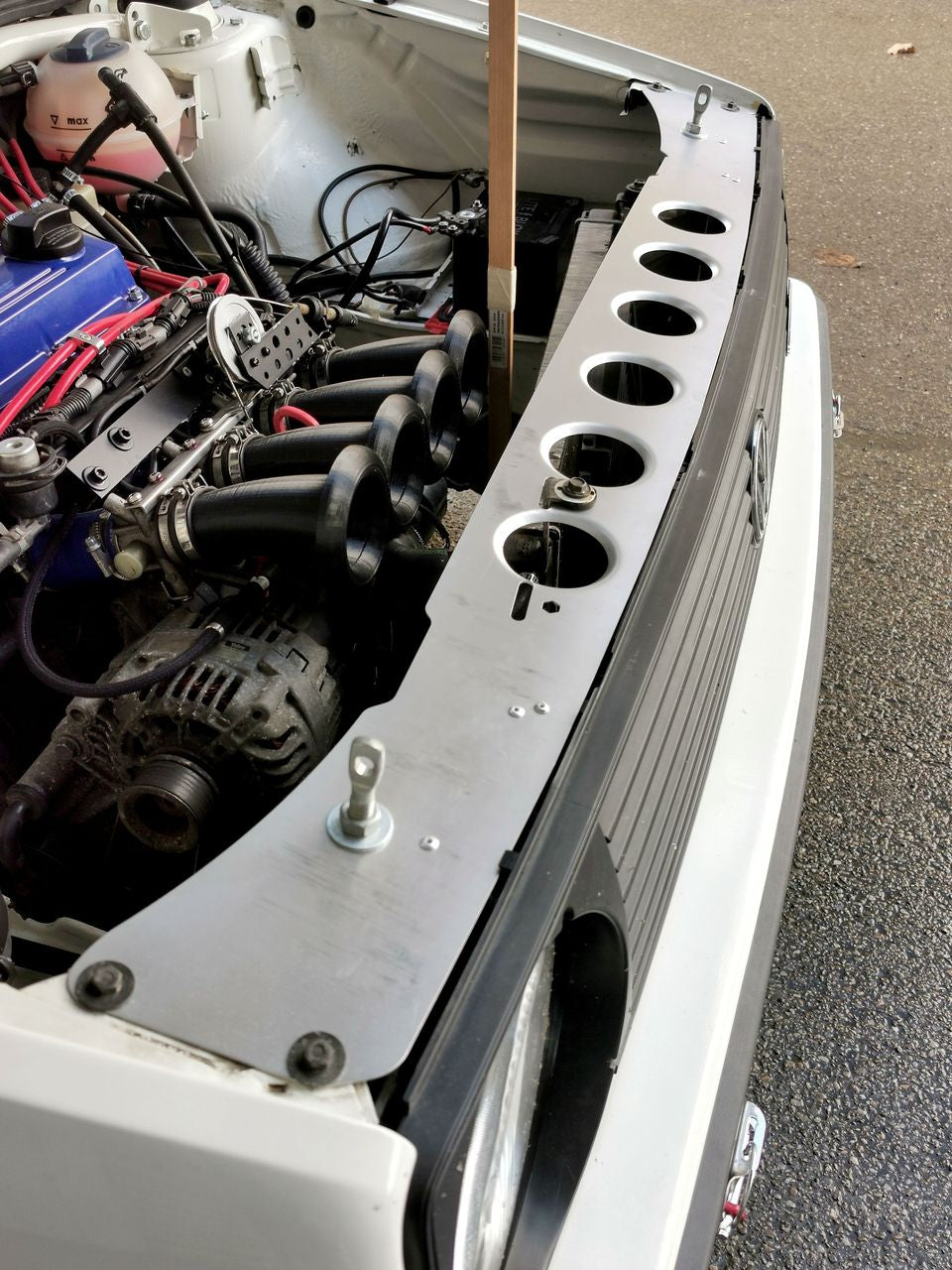

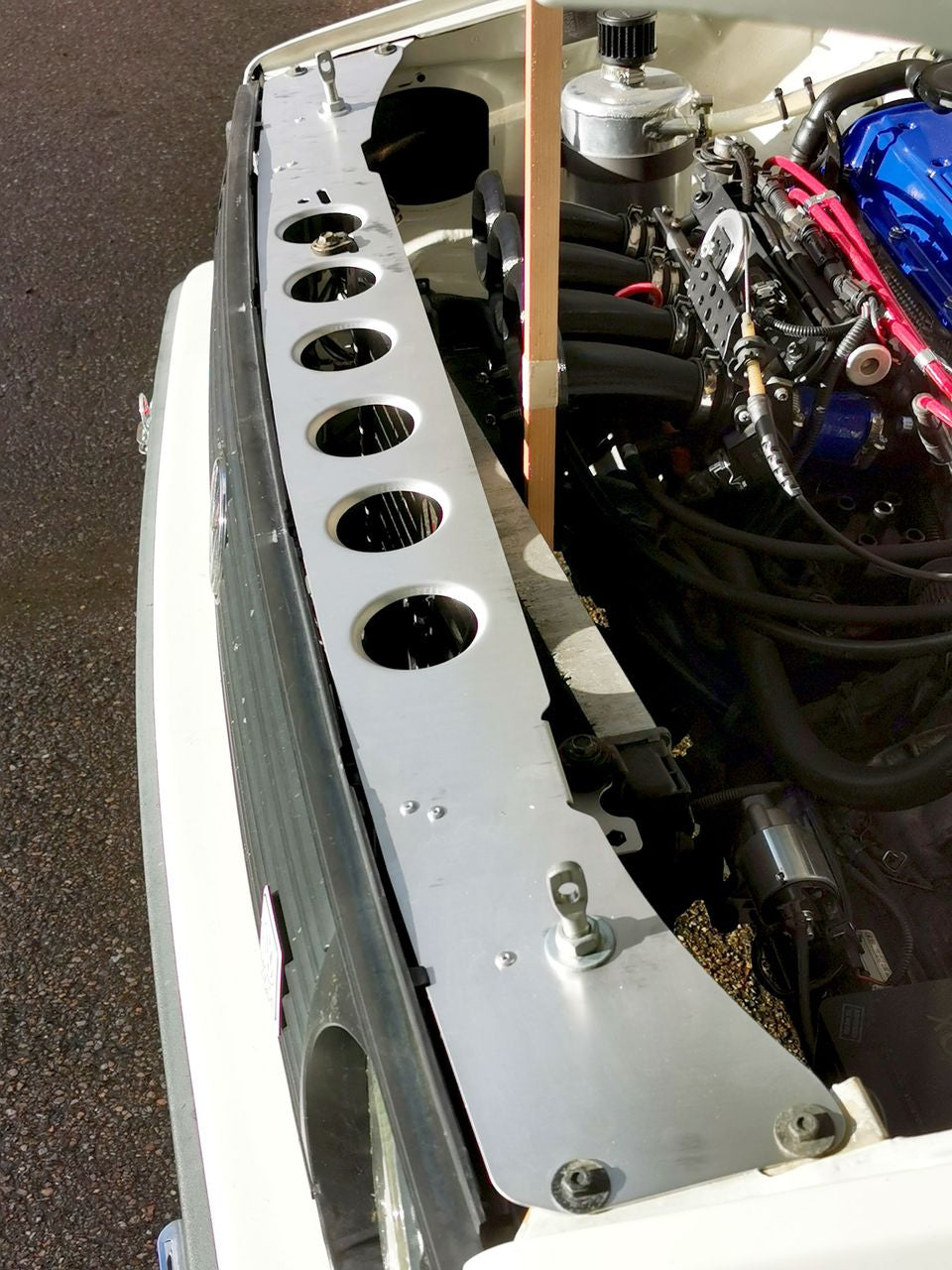

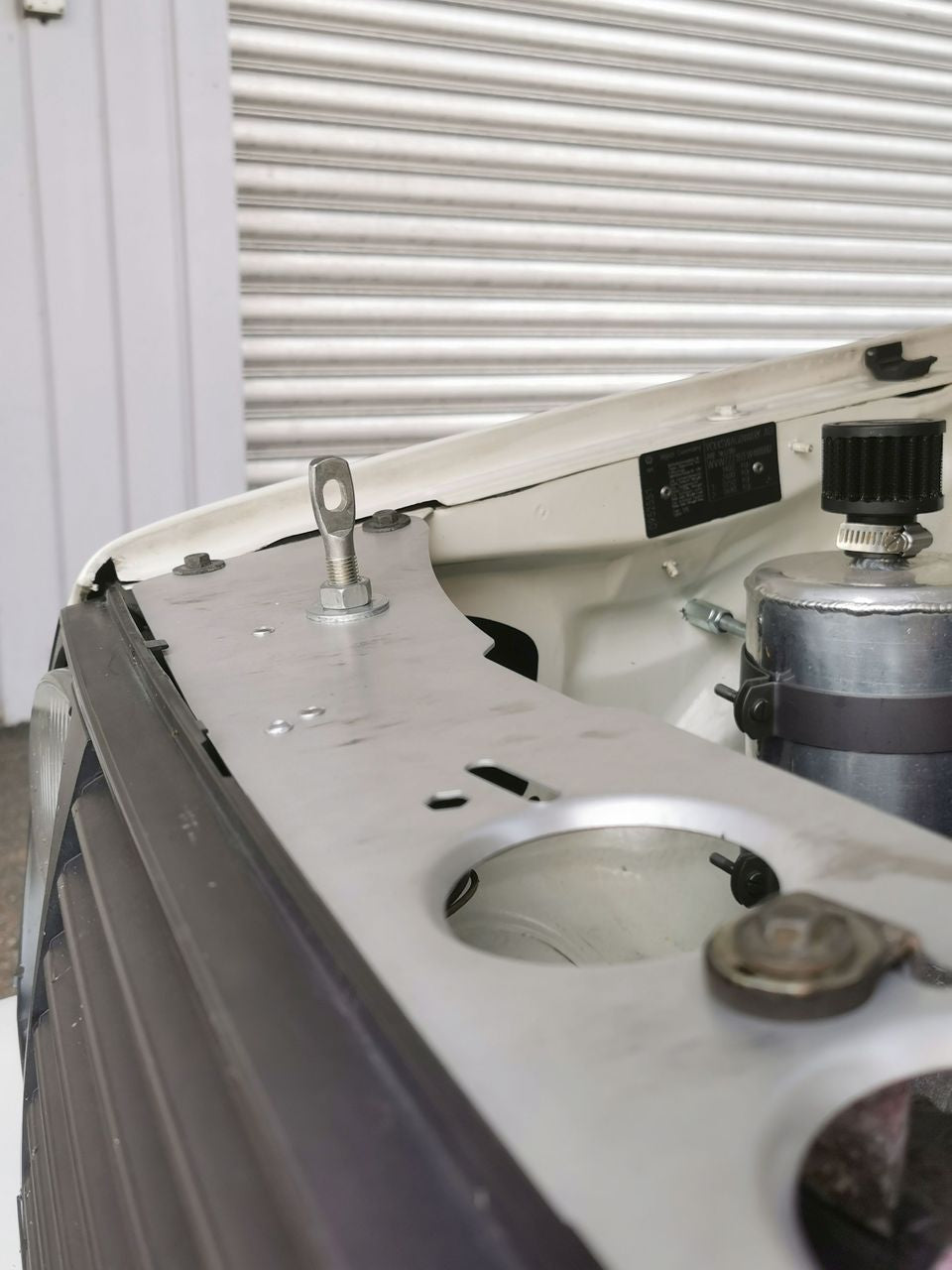

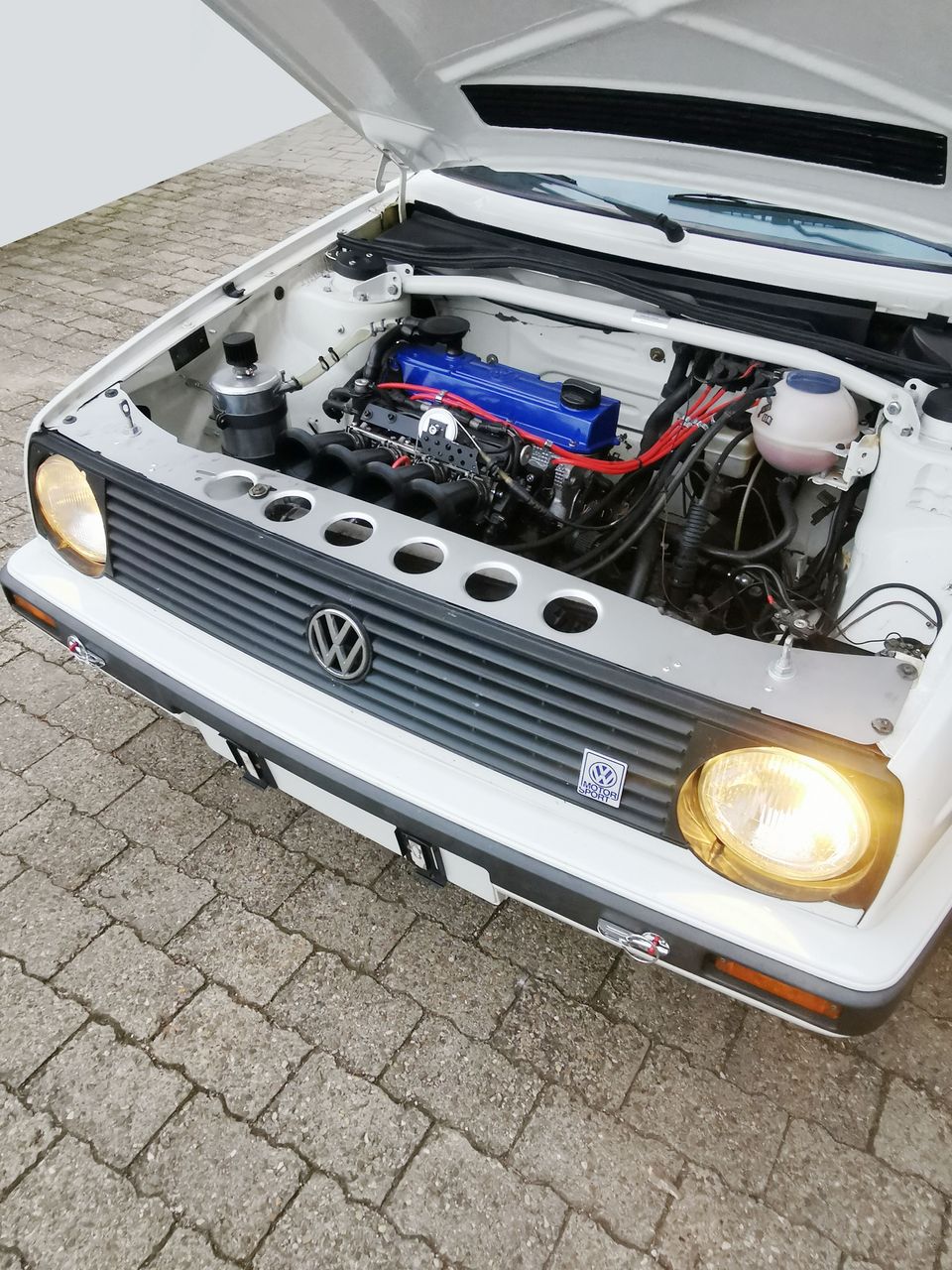

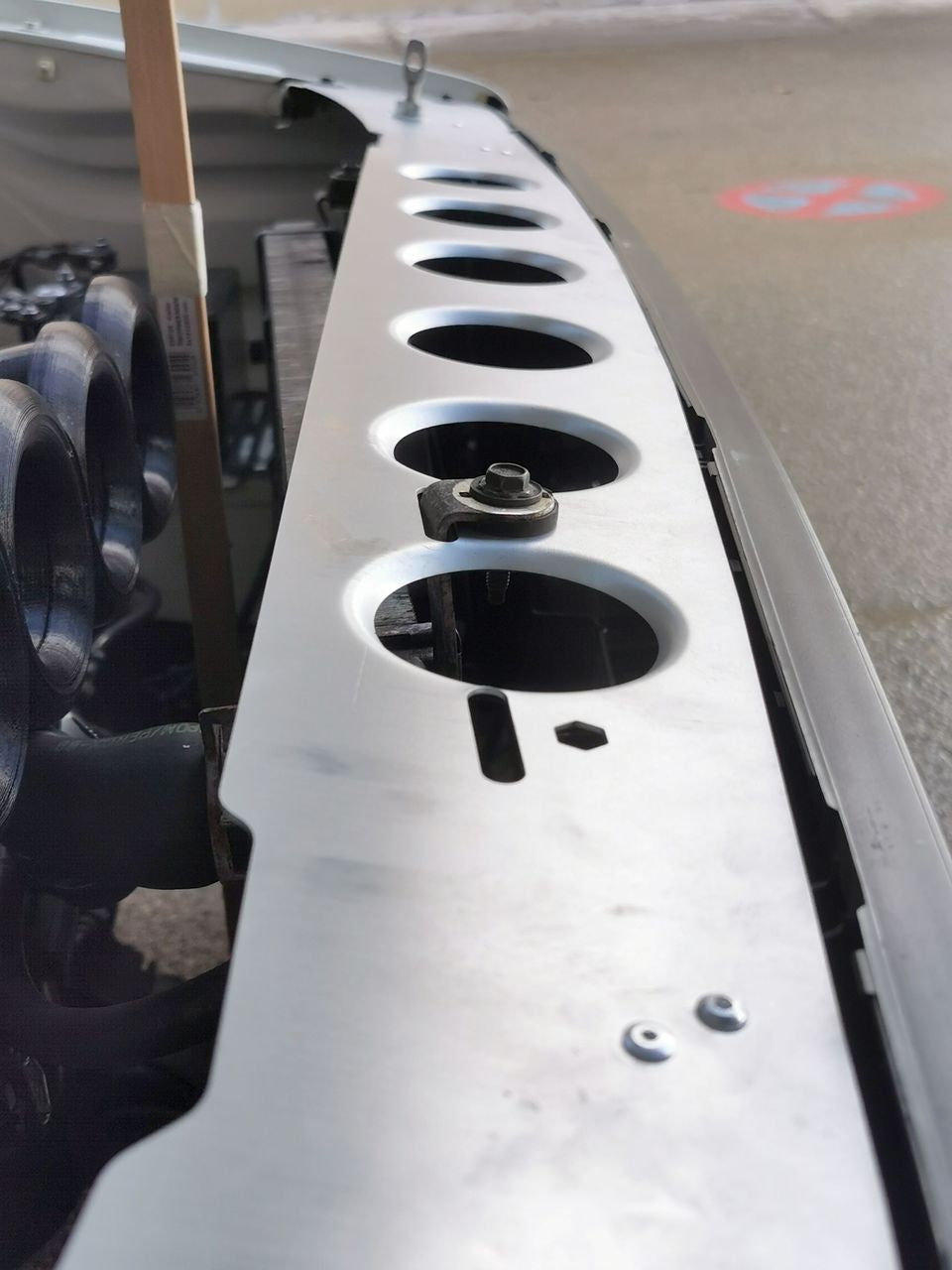

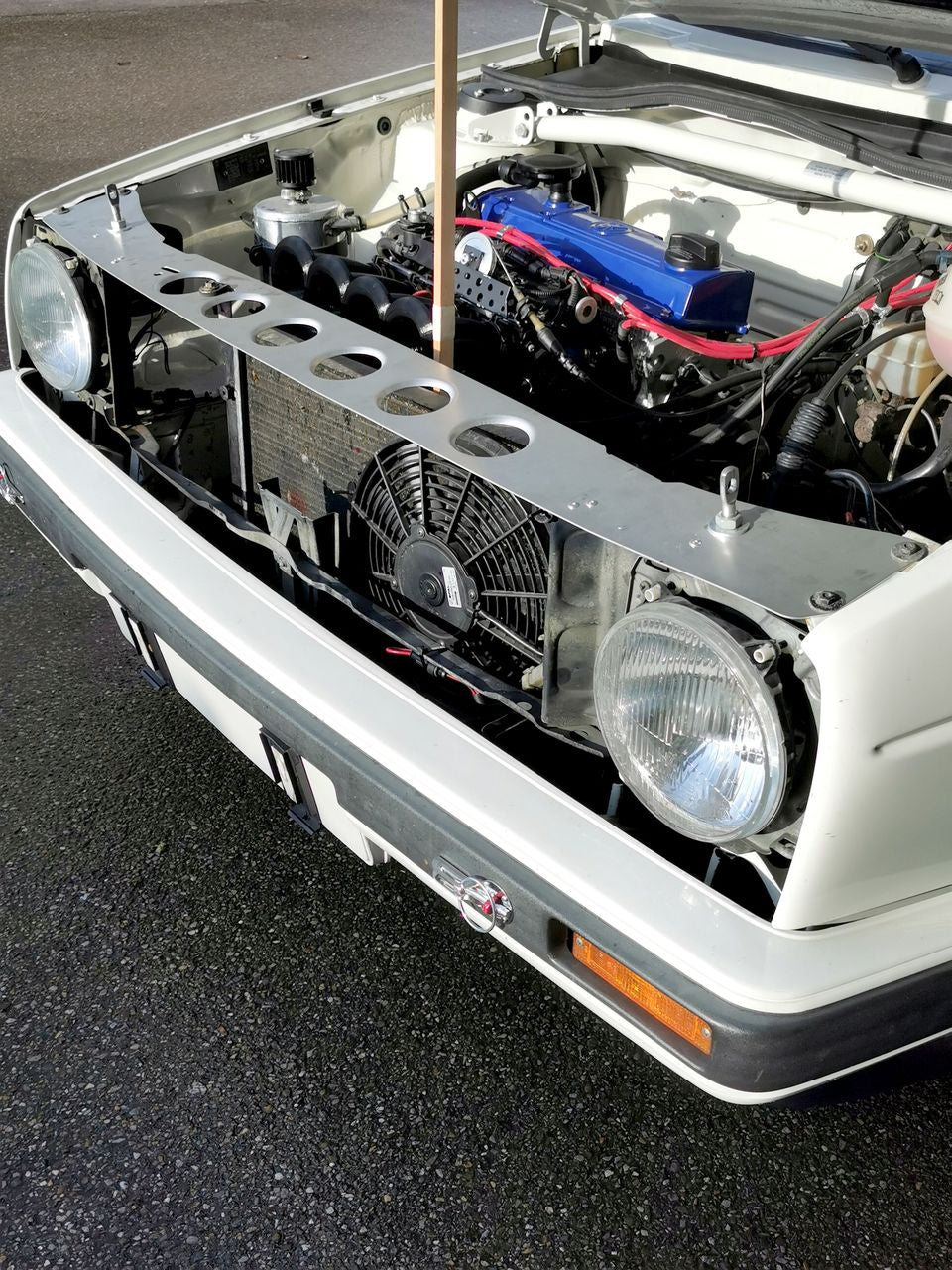

installation pictures
