lower grille for front bumper, Irmscher Senator B 4.0

caution: 3d printed part
the surface of this product is raw, layers of printing are visible. Also at locations of layer change there may occur process related material bulging. This is only a visual impairment, it does not affect function or stability.

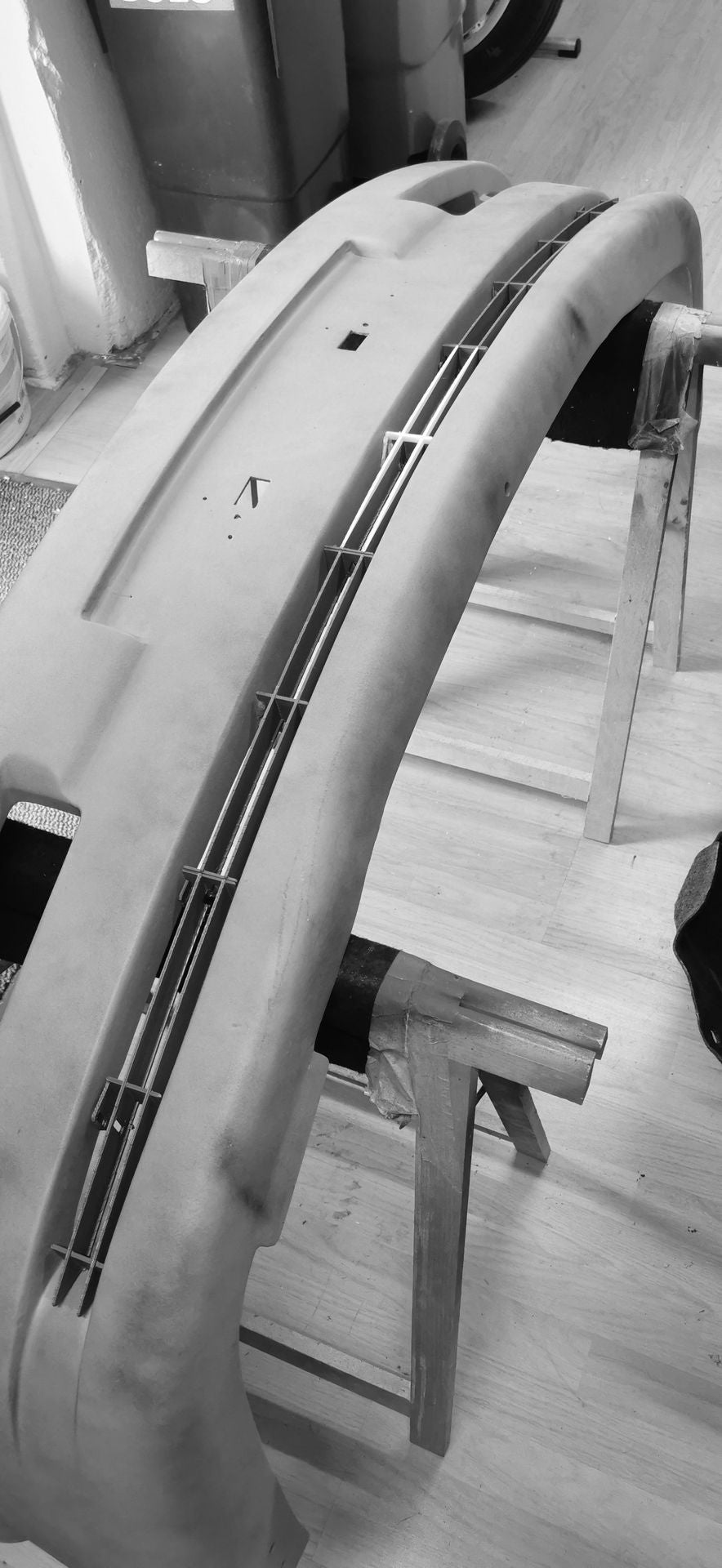

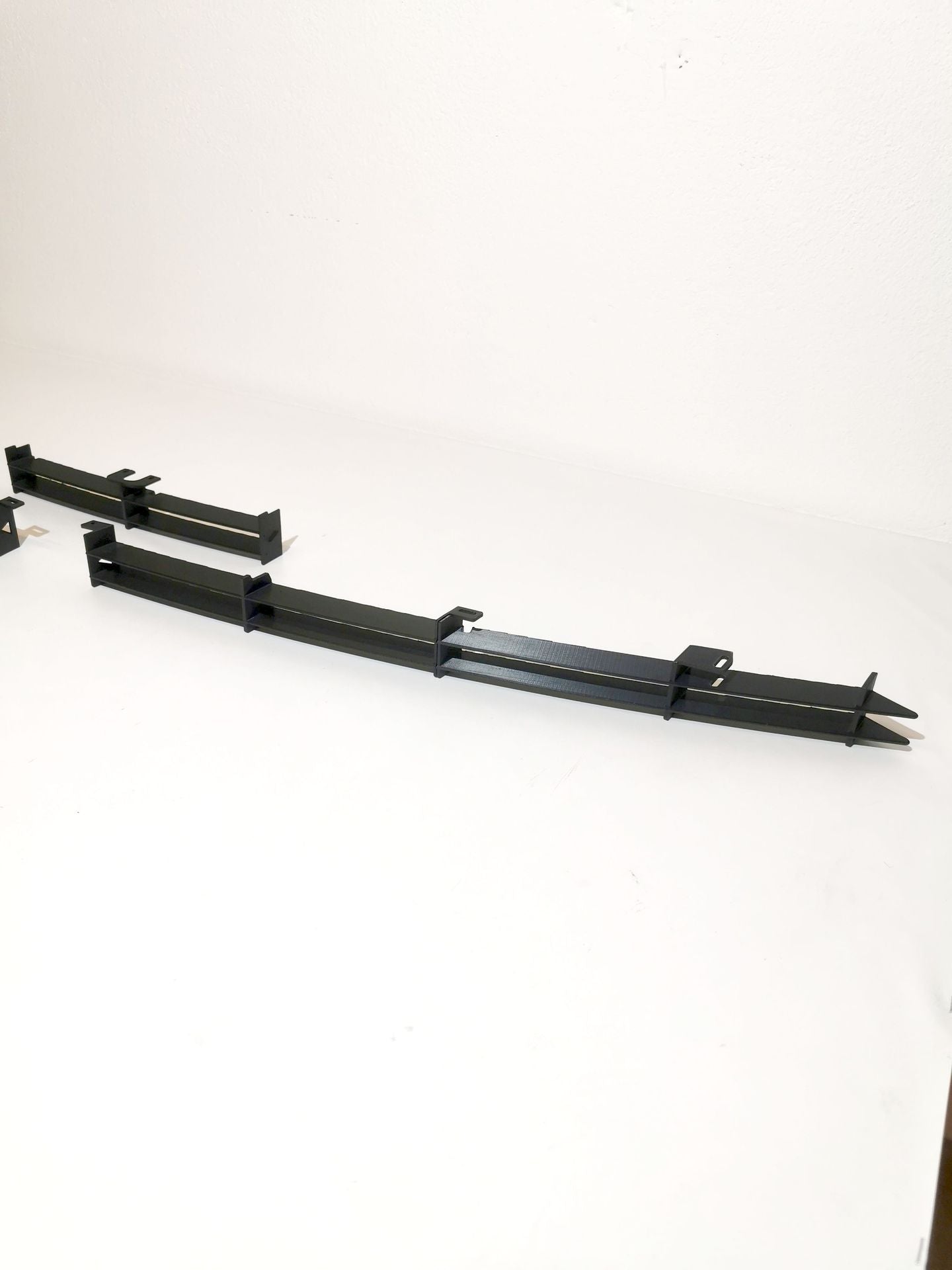

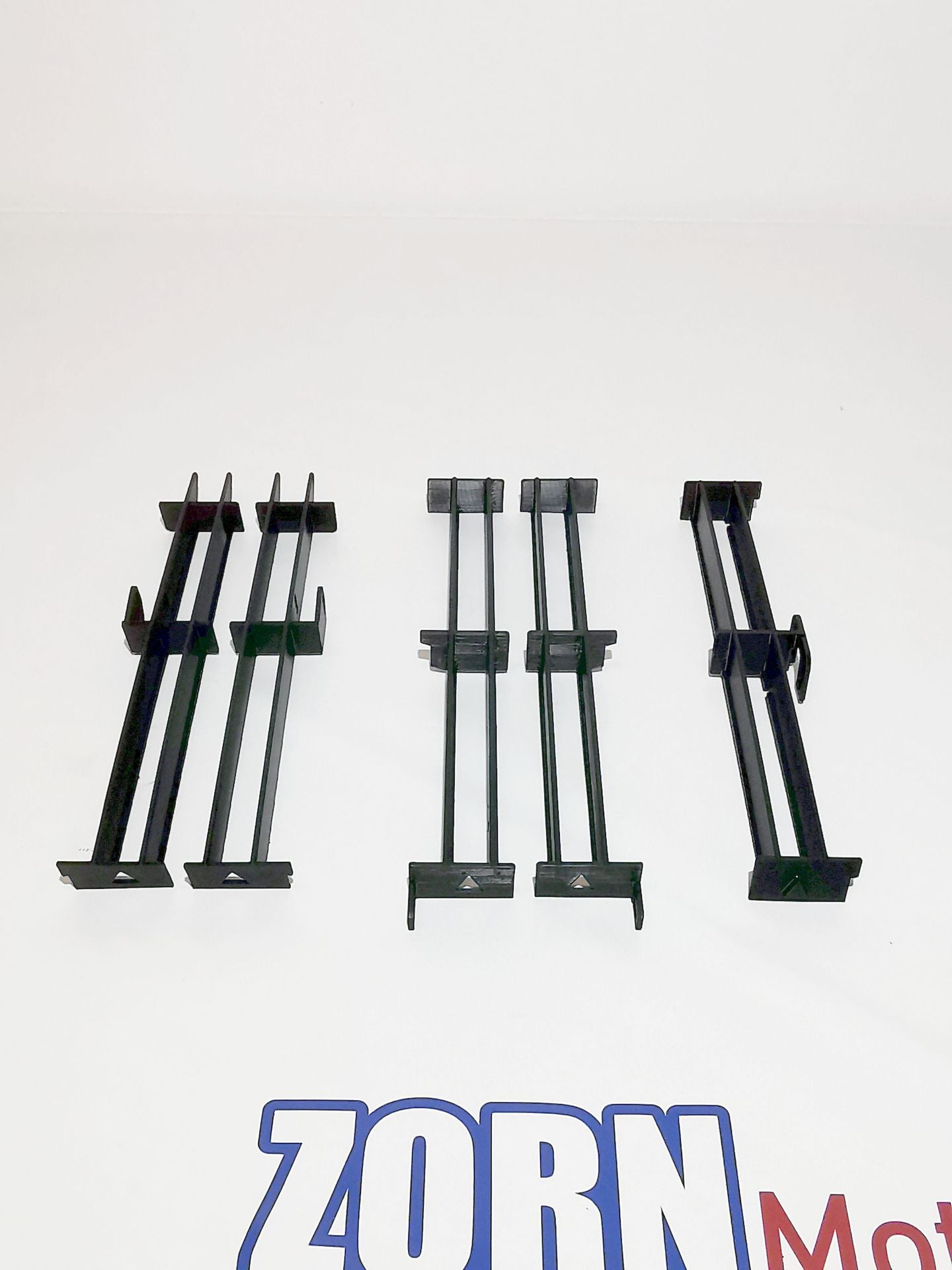

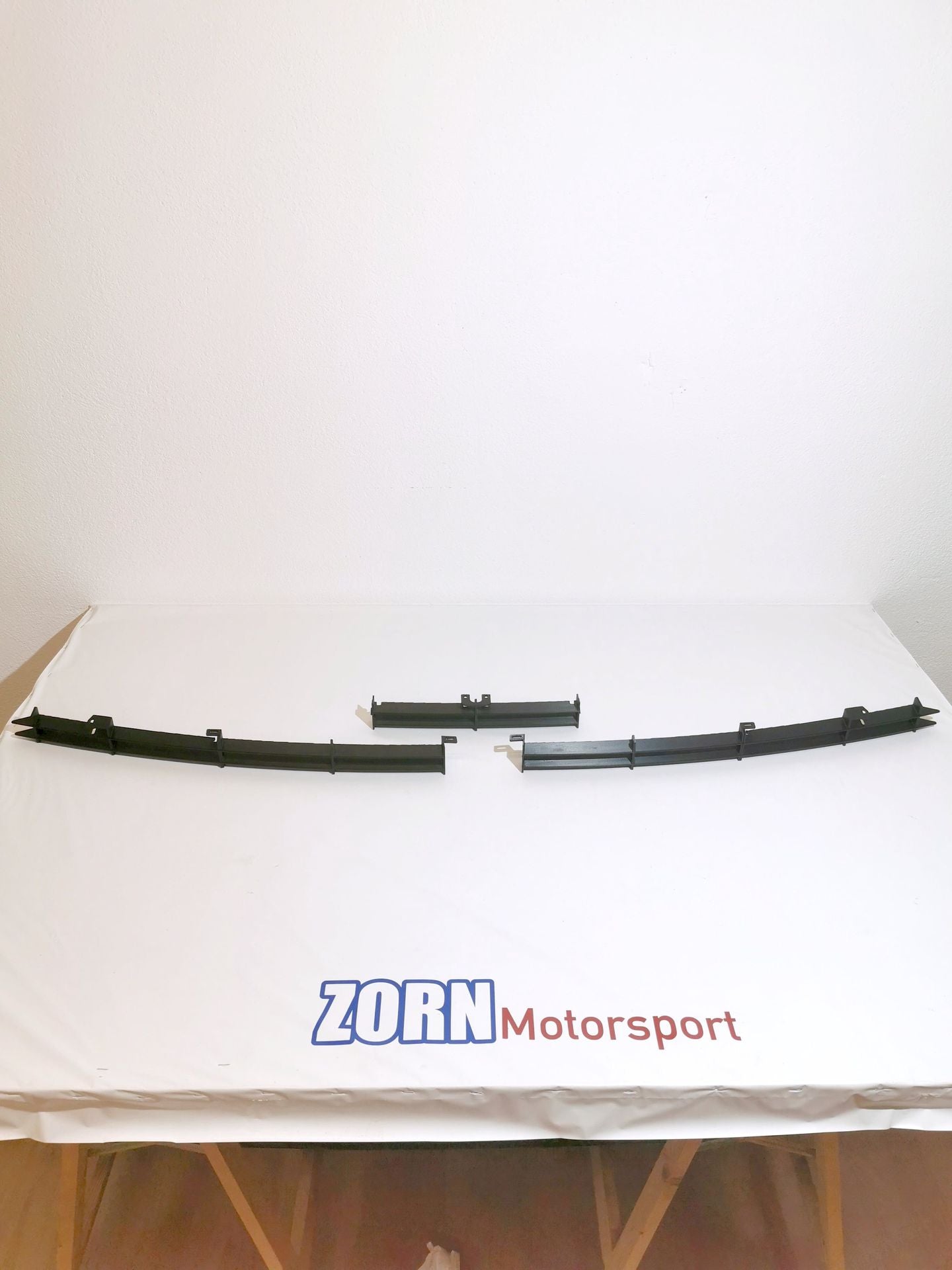

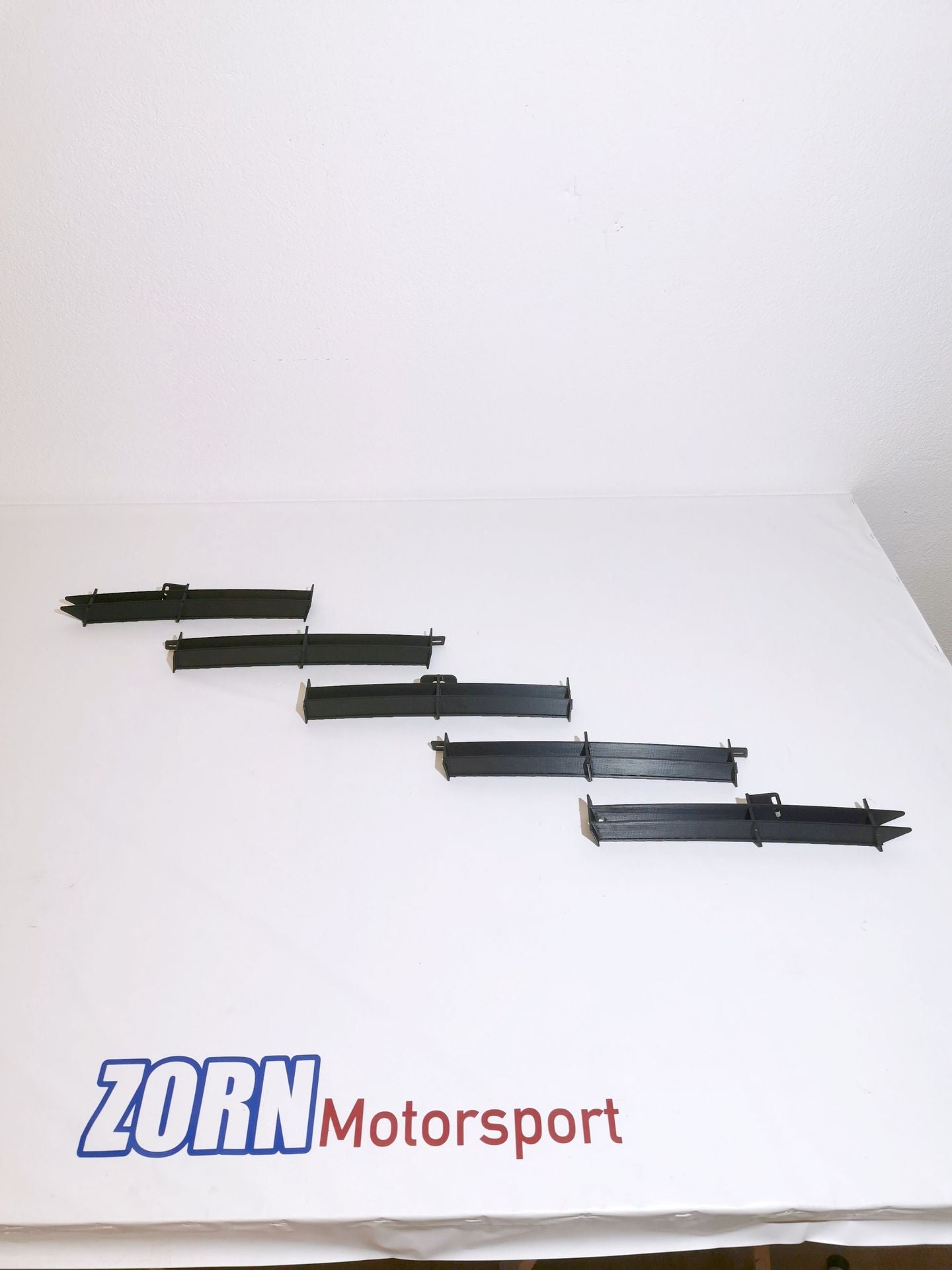

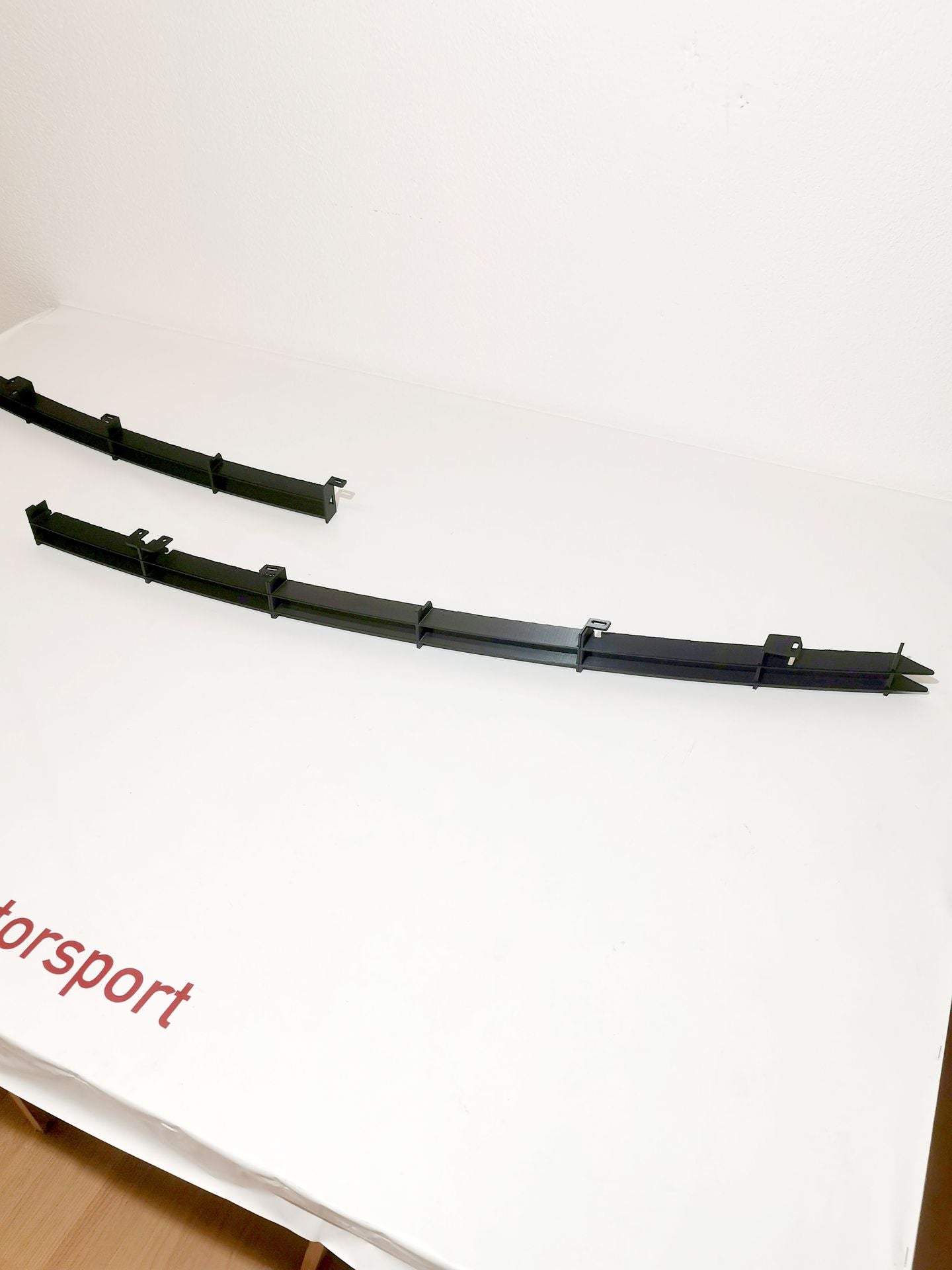

First picture shows the prototype part in mounted condition. It differs in color + layer tickness (coarse) from the final parts. The final parts are shown in picture 2 to 6 (black color, smooth and dense layers).

product attributes

• reproduction, not an original part
• reverse-engineering based on a 3d scan of an original grille

• very accurate lookalike to the original part, yet technically it differs in following points
• made from 5 pieces (1x center, 2x intermediate, 2x outer) to allow safe shipping
• each piece is a solid part, while an original grille consists of individual parts that are mated and glued together

• additional mounting points have been added for increased rigidity
• to better access the 4 original mounting points, small cut-outs have been added (almost invisible once the bumper is mounted to the car)
• the horizontal blades have an area of increased thickness on their back, which also increases rigidity (also not visible once the bumper is mounted to the car)
• produced in 3d printing technology
• material: ASA plastic, color black
• UV-resistant and temperature-resistant
• scope of delivery:
• set of 5pcs = one complete grille for a front bumper

(installation-) instructions

• to mount the grill you'll need 8 screws (recommendation = pan head screws with flange, diameter 3.9 or 4.2mm)
• it will be necessary to drill additional holes into the bumper (not directly visible once the bumper is mounted to the car)
• it is expressly recommended to NOT use any glue for installation

restriction of use

none
